XDK SC/APC To SC/APC Singlemode 3m Simplex LSZH/ PVC Sfp Fiber Optic Patch Cord
Overview:

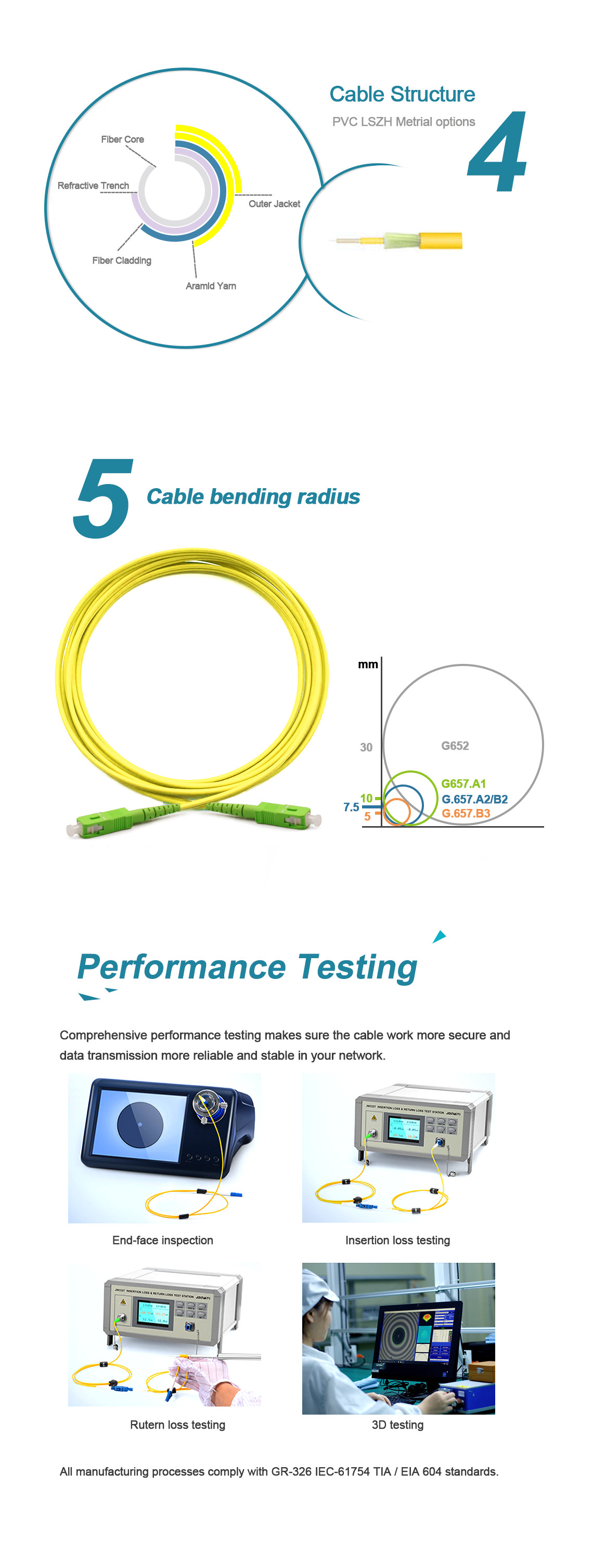

A fiber optic patch cord is constructed from a core with a high refractive index, surrounded by a coating with a low refractive index, that is strengthened by aramid yarns and surrounded by a protective jacket. Transparency of the core permits transmission of optic signals with little loss over great distances. The coating's low refractive index reflects light back into the core, minimizing signal loss. The protective aramid yarns and outer jacket minimizes physical damage to the core and coating.
Specifications:
| Connector Type | SC/APC to SC/APC | Fiber Count | Simplex |
| Fiber Mode | G652D 9/125um | Working Wavelength | 1260~1625nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥60dB |
| Attenuation at 1310/1550nm | 0.36/0.22 dB/km | Ferrule Materials | Ceramic |
| (Typical) |
| Cable Diameter | 2.0/ 3.0mm | Strength Member | Aramid yarn |
| Minimum Bend Radius | 10D | Minimum Bend Radius | 20D |
| (Long term) | (Short term) |
| Cable Jacket | PVC or LSZH | Cable Colour | Yellow |
| Operating Temperature | -20~70°C | Storage Temperature | -40~85°C |
High quality features:
Low insertion loss;
High return loss;
Good repeatability;
Good interchange;
Excellent environmental adaptability.
| Intro: |
| 1. Indoor patch cord is current normal one,it is used to attch one device to another for single routing |
| 2. Application: data transmission,telecommunication,testing equipment,optical fiber CATV,WBN. |
| 3. Feature: PC UPC APC polishing optional,low insertion loss and high return loss,400X microscope inspecting,high credibility and stability,good in repeatability and exchangeability,single mode and multimode fiber optional. |
| 4. Patch cords are classified by connectors at both ends,there are SC,FC,LC,ST,MU,E2000,DIN,D4,LX.5,MTRJ,VF-45,and SC-FC…etc hybrid patch cords. |
| 5. Patch cords are classified by fibers,there are SM,OM1,OM2,OM3,OM4 patch cords. |
| 6. Patch cords are classified by cores,there are simplex,duplex,multic-cores. |
Company introduce:
Our two manufacturing in China and Vietnam with capacity over 60000sqm production based, headquatered in Huizhou with branches in Hong Kong, Shenzhen, Munich and United States. We specialize in the manufacturing and create value to our partners through our fiber optic products and accessories range.
Global footprints: 80 partners over 60 countries. Proving connectivity solution to more than 40 million people.
FAQ:
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B. Secondly We quote according to your requirements or our suggestions.
C. Thirdly customer confirms the samples and places deposit for formal order.
D. Fourthly We arrange the production.
