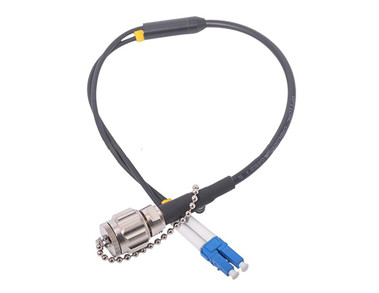

LSZH / TPU Jacket ODC - LC Fiber Optic Patch Cord With EMI Protection

  • 1
  • 2

Brand Name : XDK

Model Number : OD-LC Patchcord

Certification : ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS

Place of Origin : China/Vietnam

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5 million termination/month

Delivery Time : 5-8 work days

Packaging Details : regular packaging

Fiber Type : SM, MM

Fiber Count : 2, 4, 6, 8

Connector Type : LC

Material : LSZH, TPU

Color : according to stranded color (can be required)

Contact Now

LSZH/TPU Fiber Optic ODC-LC Patch cord with Salt-mist Proof and EMI Protection

Description
ODC fiber optic patch cables with extremely robust outdoor connector are designed to withstand harsh environment such as mechanical loads, high thermal exposure, and demanding environments like rain, salt and splash water. It is known for their ease of installation and highest operation safety due to the robust and ruggedized design. ODC military grade cables are installation-friendly for fixed or mobile applications and transmit reliably data over long distances under severe environmental conditions.

Features

  1. 100% factory tested assemblies with traceable test data,Low environmental sensitivity
  2. Robust fiber-optic connector for 2 and 4 channels with screwed mating mechanism
  3. IP68 protection, salt-mist proof, and EMI protection
  4. High shock, vibration, and mechanical resistance
  5. Broad temperature range and wide range of indoor and outdoor cables
  6. Easy, reliable and cost-effective installation
  7. Standard connector,Various connector option: LC,SC,FC,ST etc.

Specification

Connector Type(optional) End A : Socket / Plug End B : LC,SC,FC,ST
Fiber Type SM(9/125um) MM(50/125um,62.5/125um)

Polish

 UPC APC UPC
Insertion Loss (typical)

SM:Loss≤0.70dB(Max),Loss≤0.50dB(typical)

MM:Loss≤0.50dB(Max),Loss≤0.20dB(typical)

Return Loss

 ≥50dB ≥60dB ≥20dB

Repeatability

 200 times typical change value ≤ 0.20dB

Interchangeability

 ≤ 0.20dB
Mechanical character Socket / Plug:≤500N (Cable)
Protection level IP67
Fiber count(optional) 2, 4, 6, 8
Cable Diameter(optional) 4.0,5.0mm
Jacket Material(optional) LSZH,TPU
Operating Temperature -20 ~ +70 ℃
Storage Temperature -40 ~ +85 ℃

Application

  1. Indoor and Outdoor applications
  2. Outdoor & Military communication equipment connection.
  3. Oil field, mine communication connection.
  4. Far transmission wireless base station.
  5. Video Surveillance system
  6. Optical fiber sensor.
  7. Railway signal control.
  8. Intelligent substation
