Duplex Multimode OM1 Fiber Optic Patch Cable FC/UPC-FC/UPC

Brand Name : XDK

Model Number : Fiber Optic Patch Cord FC/UPC-FC/UPC

Certification : ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS

Place of Origin : China/Vietnam

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 5-8 work days

Packaging Details : regular packaging

Supply Ability : 5 million termination/month

Fiber Mode : OM1 62.5/125um

Connector Type : FC/UPC to FC/UPC

Fiber Count : Simplex

Jacket Material : LSZH or PVC( can be required)

Jacket Color : Orange

Length : 1m or 5m(customized)

Contact Now

Fiber Optic Patch Cord/ FC/UPC-FC/UPC/ Multimode OM1/Simplex /3.0mm/ LSZH/ PVC/Orange

Introduction

Fiber optic patch cords suited for equipment jumper cable, cross connects and work area connections. All patch 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards.

Our top-of-the-line fiber optic cable assemblies and stringent manufacturing process ensures the excellent optical performance for our patch cords with traceable data. All patchcords can be customized in length, fiber mode and connector types to suit every single customer requirement with our state-of-art production facilities.

Duplex Multimode OM1 Fiber Optic Patch Cable FC/UPC-FC/UPCDuplex Multimode OM1 Fiber Optic Patch Cable FC/UPC-FC/UPCDuplex Multimode OM1 Fiber Optic Patch Cable FC/UPC-FC/UPC

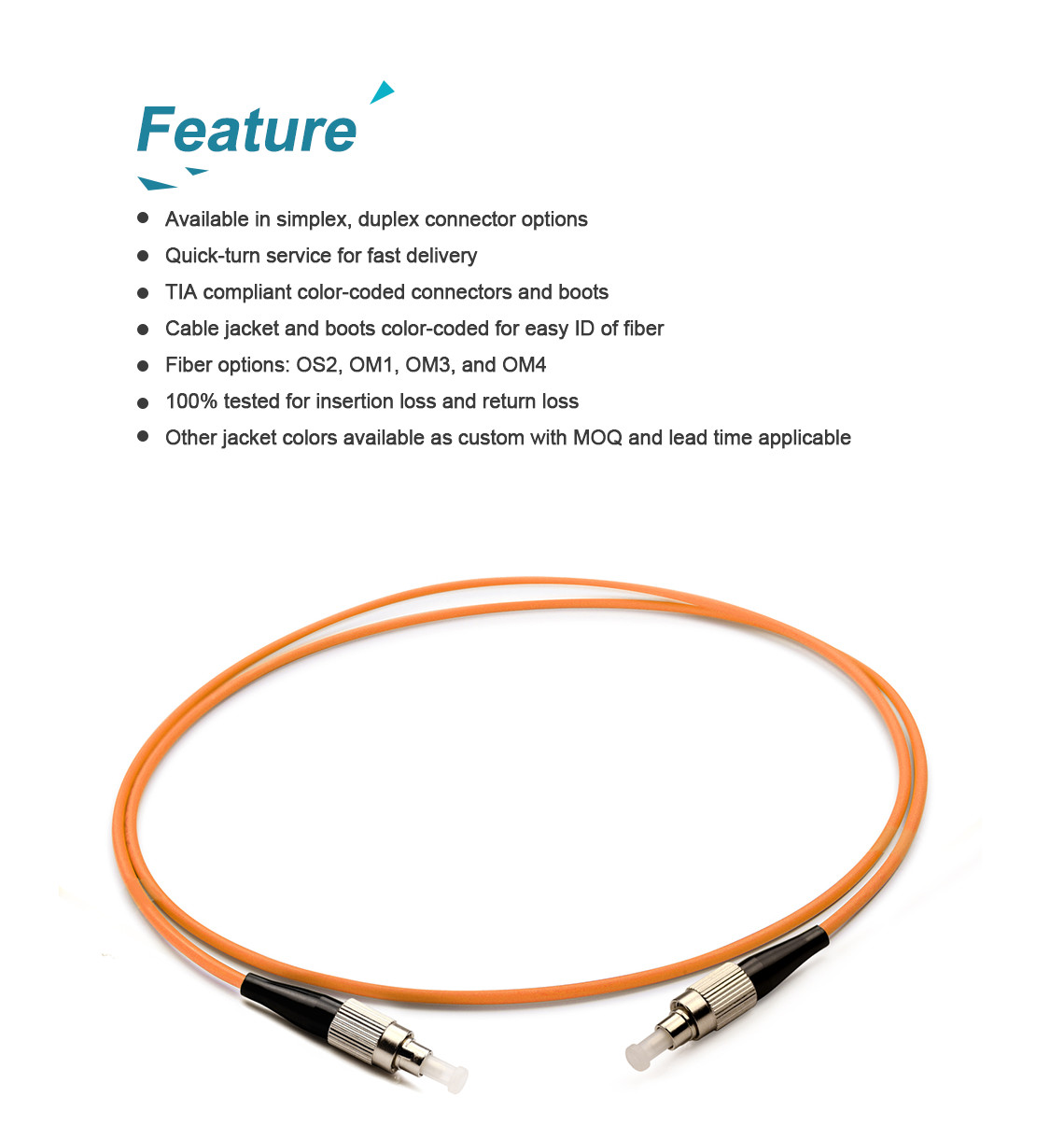

Features

1) Avalible in simplex, duplex connector options

2) Quick-tum service for fast delivery

3) TIA compliant color-coded connectors and boots

4) Cable jaket and boots color-coded for easy ID of fiber

5) Fiber options: OS2, OM1,OM3, and OM4

6) 100% tested for insertion loss and return loss

7) Other jacket colors available as custom with MOQ and lead time applicable

Specification

Connector Type FC/UPC - FC/UPC Fiber Count Simplex
Fiber Mode OM1 62.5/125um

OFL Bandwidth

(850/1300nm)

 500/500 MHz*km
Insertion Loss ≤0.3dB Return Loss ≥35dB

Attenuation at 850/1300nm

(Typical)

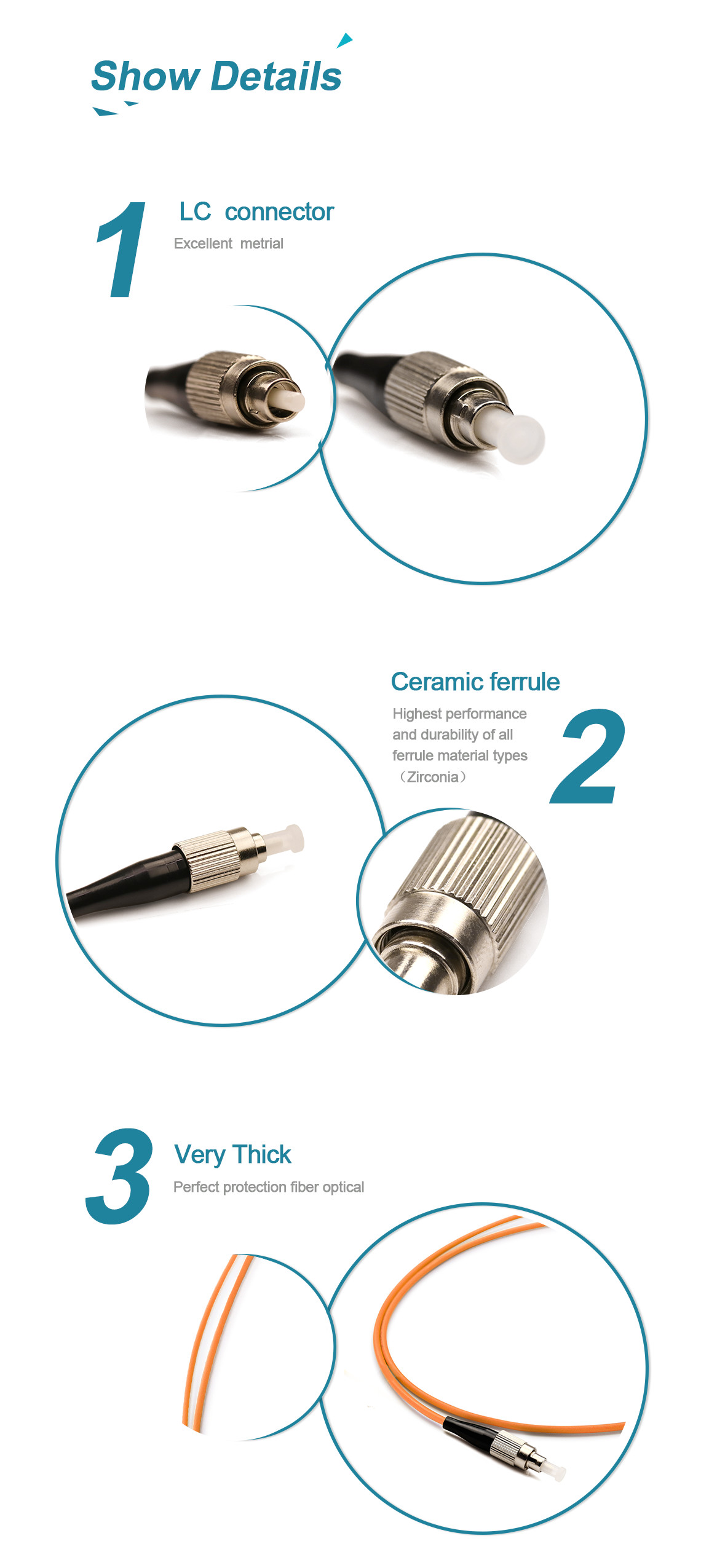

 3.5/1.5 dB/km Ferrule Material Ceramic
Cable Diameter 3.0mm Strength Member Aramid yarn
Optical Source LED Light

Minimum Bend Radius

(Short term/Long term)

 20D/10D
Operating Temperature -20~70°C Storage Temperature -40~85°C

Our certificates
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH
