Brand Name : XDK
Model Number : MTP/MPO-LC fiber Breakout Cable 12core 9/125
Certification : CPR, DCR,ECR,FCR,ROHS,ISO9001,UL
Place of Origin : China/ Vietnam
MOQ : 10PCS
Price : Negotiation
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 5million termination per month
Delivery Time : 7 Working day
Packaging Details : OEM PE bag, carton box, wooden roll
Fiber core : 12 core, 24 core, 8 core, 48 core, MPO MTP to LC SC fiber optic breakout fanout cable
Operating temperature : -10°C to +70°C, -20℃~+70℃, -40deg C to + 80deg C
Warranty : 3 Years, 1 Year
Wavelength : 850nm, 1310/1550nm, 850nm/1310nm
Color : Yellow, Aqua, Customized, white or customized
Cable diameter : 3mm for 12 strands, 3.0mm Micro Cable, 5.5mm for 24 strands, 3.0mm Optional
Singlmode MTP/MPO-LC fiber Breakout Cable 12core 9/125 3d testing
Description:
MTP/MPO breakout assemblies are used in parallel optics and duplex transmission cross connect systems to increase cable density between switch and server cabinets. Designed for high-density fiber patching in data centers, they ensure peak performance throughout your local area network. Allow for rapid deployment of high-density, multi-port patch field connectivity for Storage Area Network (SAN) applications.
Features:
1. US Conec MTP® connector, Senko MPO Plus premium connector
2. Corning Clearcurve® multimode fiber, SMF-28® Ultra optical fiber
3. LC, SC, FC, ST connectors available
4. OS2, OM4, OM3 available
5. 0.35dB elite low loss connector
6. Custom staggering options available on tails
7. Factory terminated and tested
8. Pulling eyes are provided as an option to protect the fiber ends during installation
Standards Compliance:
1. ROHS, CE (EN 50575 CPR) and ISO9001 Compliant
2. EIA/TIA, Telecocordia GR-326-CORE Standards
3. IEC61754-7
4. TIA 605-4 (FOCIS 5)
5. YD/T1272.5
Cable Diameter | 3.0mm | Breakout Cable Diameter | 2.0mm/0.9mm |
Breakout Cable Length | customized | Minimum Bend Radius | Single Mode: 10.0mm, Multimode: 7.5mm |
Color | SM: Yellow; OM3: Aqua; OM4: Violet | Jacket Material | OFNR, OFNP, LSZH |
Attenuation | Single Mode: ≤0.32 at 1310nm, ≤0.20 at 1550nm Multimode: ≤2.3 at 850nm, ≤0.6 at 1300nm | Transmission Distance | OM3: 100m at 40/100G, 300m at 10G OM4: 150m at 40/100G, 400m at 10G |
Insertion Loss | Single Mode: ≤0.35, Multimode: ≤0.35 | Return Loss | Single Mode: UPC Polish: ≥50, APC MM: ≥20 Polish: ≥60 |
Storage Temperature | -40°C to +85°C | Operating Temperature | -10°C to +70°C |
![]() |

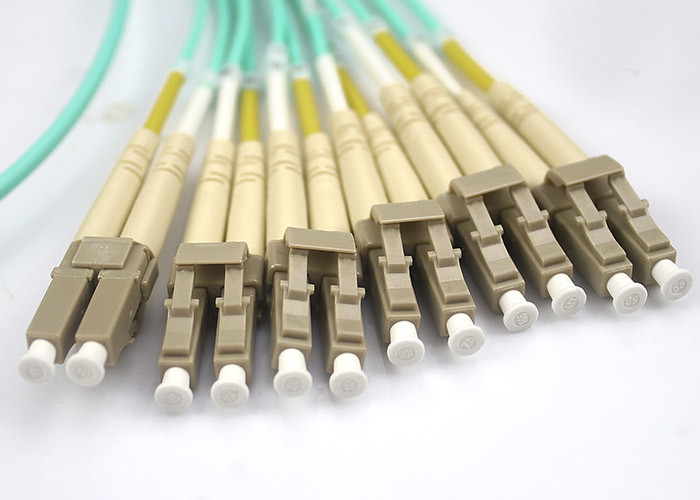

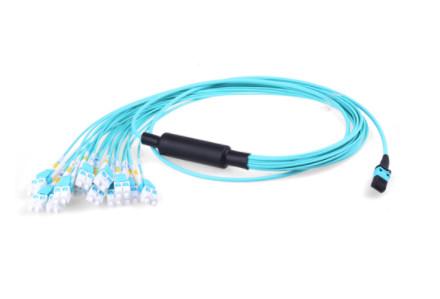

XDK Mtp To Lc Breakout Cable , 9/125 12 Core Single Mode Fiber Optic Cable Images |
