MTP APC- LC PC Truck Patch Cable for Date center 12core 24core 3.0mm single jacket or 4.6mm double jacket
Performance:
| | END A | END B |
| Connector Type | MTP/MPO | MTP/MPO | LC | LC Uniboot | SC |
| Polarity | Polarity A, Polarity B, Polarity C |
| IL(MTP/MPO) | Standard ≤0.5 dB Ave ≤0.3dB |
| IL(MTP/MPO) | Elite: ≤0.35dB Ave: ≤0.2dB |
| IL(LC/SC) | Standard ≤0.25dB Low Loss : ≤0.15dB |
| RL | SM:≥60dB MM: ≥20dB |
| Tester Brand | EXFO & JGR |
| Repeatability | ≤0.2dB |
| Interchangeability | ≤0.2dB |
| Mating | 1000 Times |
| Opterating Temperature | -20℃ ~ +70℃ |
| 3D Interferometer | Fiber Height: 1000nm~3500nm
Radius Long: 500mm min Radius Short: 50mm min Ferrule Height: 7.95mm min
MM Core Dip: <100nm |
Notes:
Each MPO Breakout Cable is available with 8 to 144 fibers and is most commonly used to assist in upgrading existing 10G networks to higher performing 40G and 100G rates. Higher performing options are available and include the Senko MPO Plus® Premium Connector and Corning® ClearCurve® Fiber, able to create less insertion loss and preserve the connection integrity.
Please note: MPO Plus® is a registered trademark of Senko Advanced Components, Inc. 2013-2020 © All Rights Reserved. Senko MPO Plus® connectors are fully compliant with the MPO standards, which are enhanced in the areas of mechanical durability, product features and most importantly the optical performance of the MT ferrule itself.
Test:
Features:
- Ulitize MPO/MTP connectors
- Inner: Ceramic Ferrule
- Available in Elite insertion loss and standarad insertion loss.
- Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.
- They use a simple push-pull latching mechanism for easy and intuitive insertion and removal.
- It provides up to 8, 12, 16, 24 times the density, thereby offering savings in circuit card and rack space.
- Available in OS1/2, OM1, OM2, OM3 and OM4, OM5
- Telcordia’s GR-326-Core, IEC Standard
- Green Production, RoHS Standard
- Interface polished type has PC, UPC and APC
Application
- Metro
- CATV
- Passive fiber optic networks
- Builing communication center
- Bank Data center
- Communication center rooms
- FTTH (Fiber to The Home)
- FTTA (Fiber to the attena)
- LAN (Local Area Network)
- FOS (fiber optic sensor)
- Fiber Optic Communication System
- Optical fiber connected and transmitted equipment
- Defense combat readiness
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea

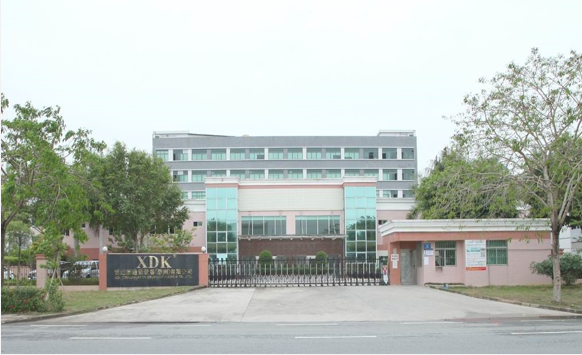

Our Factory:
Product Tags:
|
|

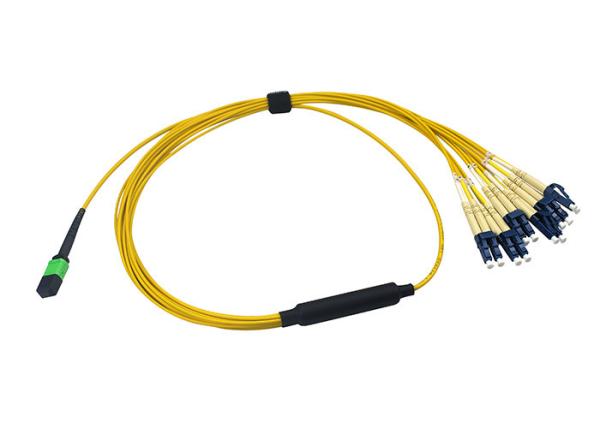

12core 24core MTP MPO Fiber Cable 3.0mm Single Jacket Or 4.6mm Double Jacket Images
|
