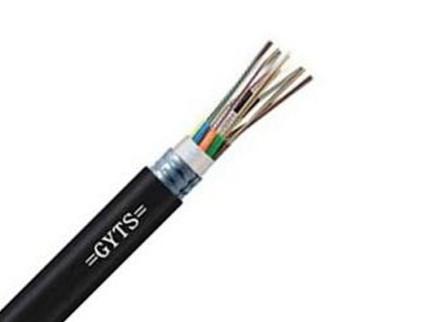

FTTX/FTTH/Stranded Loose Tube Light-armored Cable(GYTS)/LSZH/Black/Water Blocking/FRP/
Description
The fibers, 250μm, single mode or muti mode , are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.
Features
1) Good mechanical and temperature performance
2) High strength loose tube that is hydrolysis resistant
3) Special tube filling compound ensure a critical protection of fiber
4) Crush resistance and flexibility
5) PE sheath protects cable from ultraviolet radiation
6) The following measures are taken to ensure the cable watertight:
7) Steel wire used as the central strength member
8) Loose tube filling compound and 100% cable core filling
9) PSP enhancing moisture-proof
Application
1) Adopted to outdoor distribution
2) Suitable for aerial, pipeline laying method
3) Long distance and local area network communication
Specification
1) Fiber Allocation Scheme
| Fiber number |
Tube number |
Fiber per tube |
Fiber type |
| 24-144 |
1-12 |
2-12F/Tube |
OS1,OS2,OM1,OM2,OM3,OM4 |
Requirement for Order
1) Fiber sort: Multi mode:OM1,OS2, OM2,OM3,OM4, Single mode:G652,G655,G657
2) Fiber brand: YOFC, Corning, Fiberhome,Fujikura,OFS etc.
3) Sheath material: PE/LSZH( can be required).
4) Sheath color: Black ,can be required.
5) The tube and fiber color: according to stranded color, can be required.
6) The cable Size: shall be in accordance with the table, can be required.
7) Length of cable: generally is 2KM, can be required.
Packing Informations
1) Packing material: Wooden drum
2) Packing length: Generally 2 km. Can be required by customer.
Our certificates
1) ISO9002
2) SGS, ROHS
3) REACH
4) ULE329066
Testing Lab
| No |
Device name |
No |
Device name |
| 1 |
Optical time domain reflectometer (OTDR) |
8 |
GNZV Cable Torsion Testing Machine |
| 2 |
Fiber Polarization Mode Dispersion |
9 |
GQNV Cable Flexing Testing Machine |
| 3 |
Fiber Dispersion ,Strain Tester |
10 |
GJRV Cable Winding Testing Machine |
| 4 |
High Low Temperature Test Chamber |
11 |
GZDV Cable Vibration Testing Machine |
| 5 |
Cable Impact Testing Machine |
12 |
Cable Water Penetration Test |
| 6 |
Cable Squash Tensile Testing Machine |
13 |
Fusion Splicer |
| 7 |
GWQV Cable Bending Tester |
14 |
Cable Water Penetration Test Rig |
Fiber Optic Cable Mechanical Performance Testing Laboratory
1) Main Testing Type: Precision Test and Mechanical Test.
2) Precision Testing Machine: EXFO OTDR, EG&G PMD-440,CD-400.
3) Mechanical Performance Testing : Temperature, Impact, Tensile, Bending, Torsion, Flexing, Winding, Vibration, Water Penetration, Fusion Splicer, Water Penetration.
Our advantages
1) About 20 years experiences in cable industry
2) Professional cable manufacturer
3) ISO, UL , ROSH,REACH...certifications
4) MOQ just 1Km
5) Can be customized production of fiber optic cable
