MTP PC- LC PC Truck Patch Cable for Date center 12core OM3 OM4 Aqua 3.0mm single jacket or 4.6mm double jacket
Performance:
| | END A | END B |
| Connector Type | MTP/MPO | MTP/MPO | LC | LC Uniboot | SC |
| Polarity | Polarity A, Polarity B, Polarity C |
| IL(MTP/MPO) | Standard ≤0.5 dB Ave ≤0.3dB |
| IL(MTP/MPO) | Elite: ≤0.35dB Ave: ≤0.2dB |
| IL(LC/SC) | Standard ≤0.25dB Low Loss : ≤0.15dB |
| RL | SM:≥60dB MM: ≥20dB |
| Tester Brand | EXFO & JGR |
| Repeatability | ≤0.2dB |
| Interchangeability | ≤0.2dB |
| Mating | 1000 Times |
| Opterating Temperature | -20℃ ~ +70℃ |
| 3D Interferometer | Fiber Height: 1000nm~3500nm
Radius Long: 500mm min Radius Short: 50mm min Ferrule Height: 7.95mm min
MM Core Dip: <100nm |
Testing:
Features:
- Ulitize MPO/MTP connectors
- Inner: Ceramic Ferrule
- Available in Elite insertion loss and standarad insertion loss.
- Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.
- They use a simple push-pull latching mechanism for easy and intuitive insertion and removal.
- It provides up to 8, 12, 16, 24 times the density, thereby offering savings in circuit card and rack space.
- Available in OS1/2, OM1, OM2, OM3 and OM4, OM5
- Telcordia’s GR-326-Core, IEC Standard
- Green Production, RoHS Standard
- Interface polished type has PC, UPC and APC
- Support use in attaching directly to 40/100G transceivers
Application:
- Metro
- CATV
- Passive fiber optic networks
- Builing communication center
- Bank Data center
- Communication center rooms
- FTTH (Fiber to The Home)
- FTTA (Fiber to the attena)
- LAN (Local Area Network)
- FOS (fiber optic sensor)
- Fiber Optic Communication System
- Optical fiber connected and transmitted equipment
- Defense combat readiness
MTP/PC-LC/PC OM3 Breakout trunck cable
Notices:
①Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
②Ferrule End-face: PC, UPC, APC
③Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④Fiber Quantity: 4 core, 8 core, 12 core, 24 core
⑤Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum

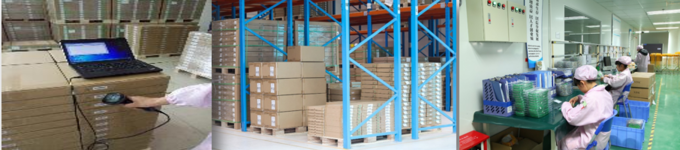

Packing:

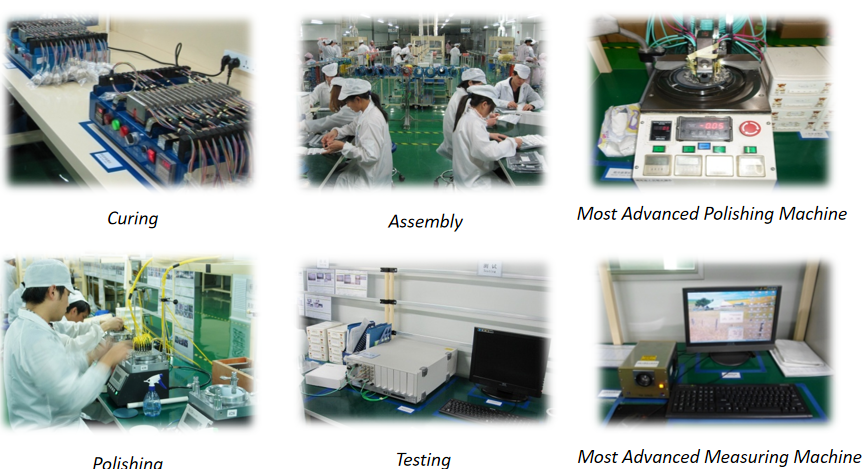

Producing:
