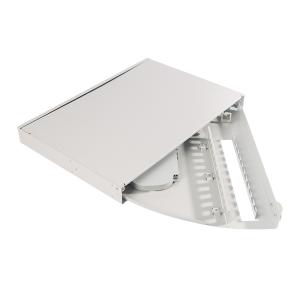

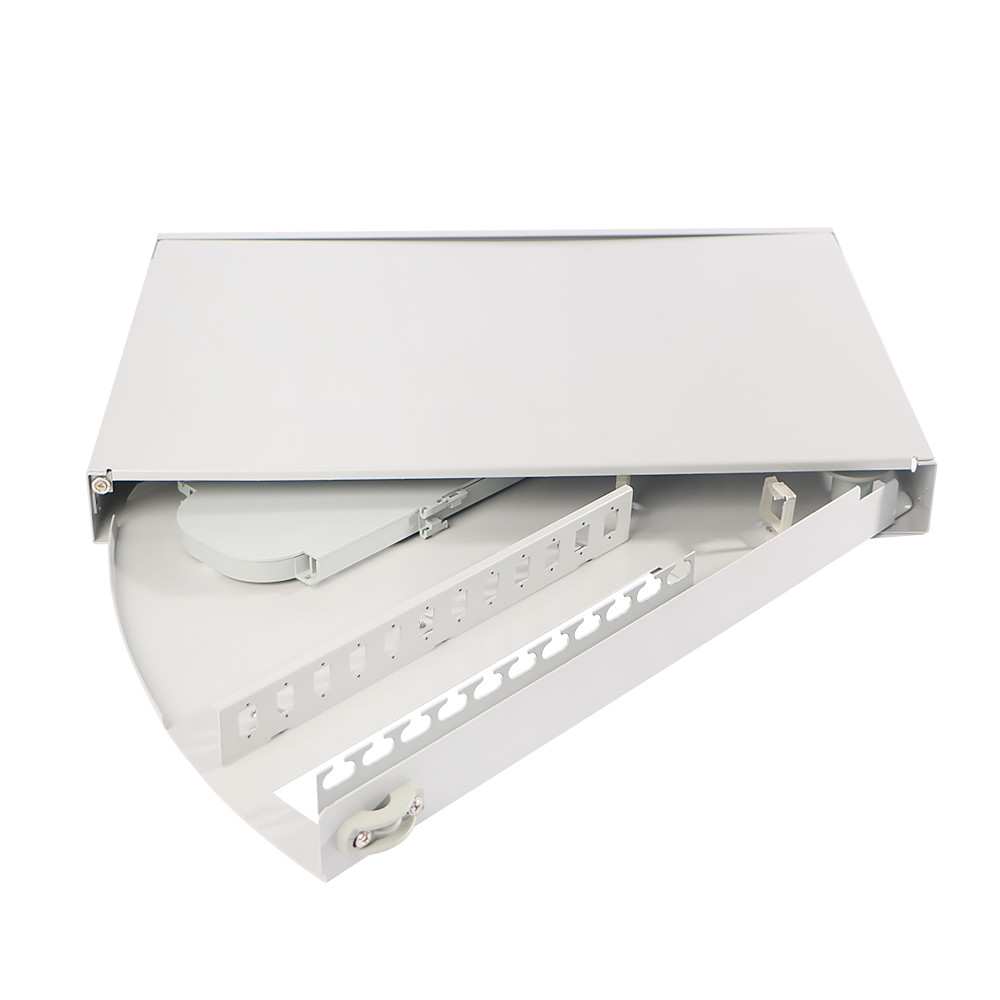

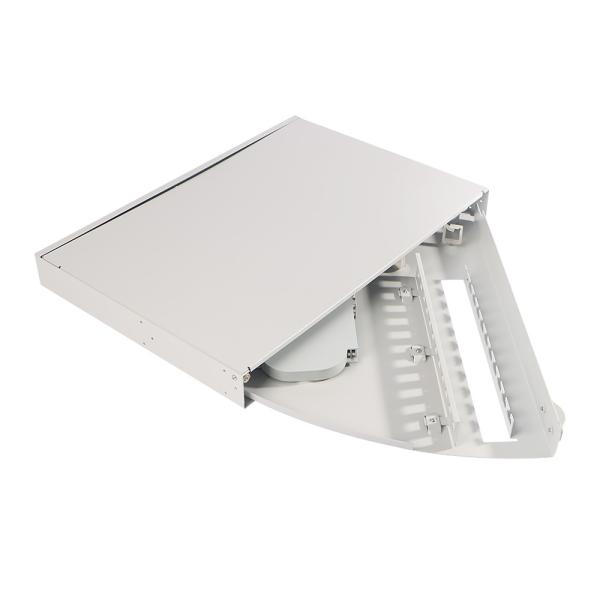

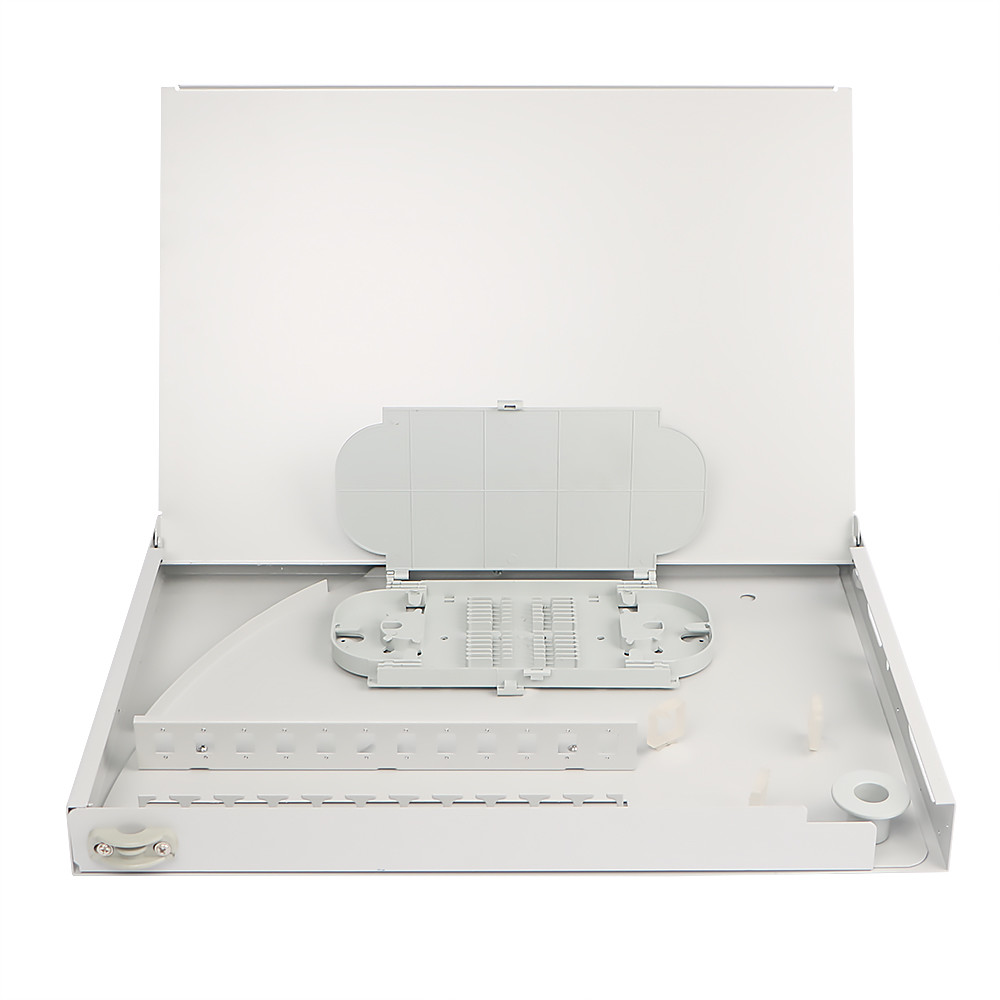

12 Port Rotary Type 1U Fiber Optic Distribution Frame ODF,White Color, For 19" Rack Mounted And Cable Distribution
Description
The 1U Rack mounted patch pane(FCST03403) is the standard 19 inch size. It install in 19 inch network cabinet .The structure is rotary . The Rack mount patch panel comes fitted with 12 or 24 LC ,SC ,ST ,FC ,E2000 and so on. The installation cable may enter the 1U rack at the rear. The cable guide for the rear cable entry. The pigtail fiber reserve 1.5 m, per pigtail can be stored in the splice tray plate or splice tray.19” 1U Uni Rack patch panel comes supplied with fastening material, labeling strips and installation manual.
Feature
- High quality.
-The Metal of Cable Guide.
- 12 color fibers.
- Reserve drawer for incoming installation cable.
- Convenient access for service and repair work.
Specification
| Construction | Description |
| Product NO | FCST03403 Fiber Optic Patch Panel |
| Size(mm) | 486*310*50 |
| Core Capacity | 12-96 |
| Cable Port(max) | 2-4 |
| Max Diameter Of Cable(mm) | φ22 |
| Core Capacity Tray | 12-24 |
| Weight (kg) | 3.8 |
FAQ
Q1. What about the price?
Re: We usually quote within 12 hours after we confirm the technical data of your products.
Q2. What's the payment method?
Re: We accept L/C, T/T, Western Union, MoneyGram, PayPal etc.
Q3. What’s your terms of payment?
Re: 30% in advance, and 70% before shipment
Q4. How to ship the items to me?
Re: Courier(DHL,TNT,FEDEX,UPS,EMS), Airfreight, Ocean Ship are available.
Q5. How long is your delivery time?
Re: The general delivery time is 5-7 days after order is confirmed, it depends on the order quantity.
Q6. Can you send me a free sample?
Re: Yes, we are willing to send free sample, if you would like to pay the shipping costs.
Q7. Do you accept OEM or ODM?
Re: Yes, we're factory, any your customized requirements we can do our best to help you realize.
