Fiber Optic Patch Cord/ Fiber Optic Bundle Patch Cord/Stable Optical Properties/Good Exchangability/ LSZH/ Yellow/

Brand Name : XDK

Model Number : Fiber Optic Bundle Patch Cord

Certification : ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS

Place of Origin : China/Vietnam

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 5-8 work days

Packaging Details : regular packaging

Supply Ability : 5 million termination/month

Fiber Mode : G657A1,G657A2,OS1,OS2,OM1,OM2,OM3,OM4,OM5

Fiber Count : Simplex

Connector Type : LC/SC/FC/ST

Jacket Material : LSZH, PVC( can be required)

Jacket Color : Yellow, Aqua, Violet, Orange

Length : 1m-99m(can be required)

Contact Now

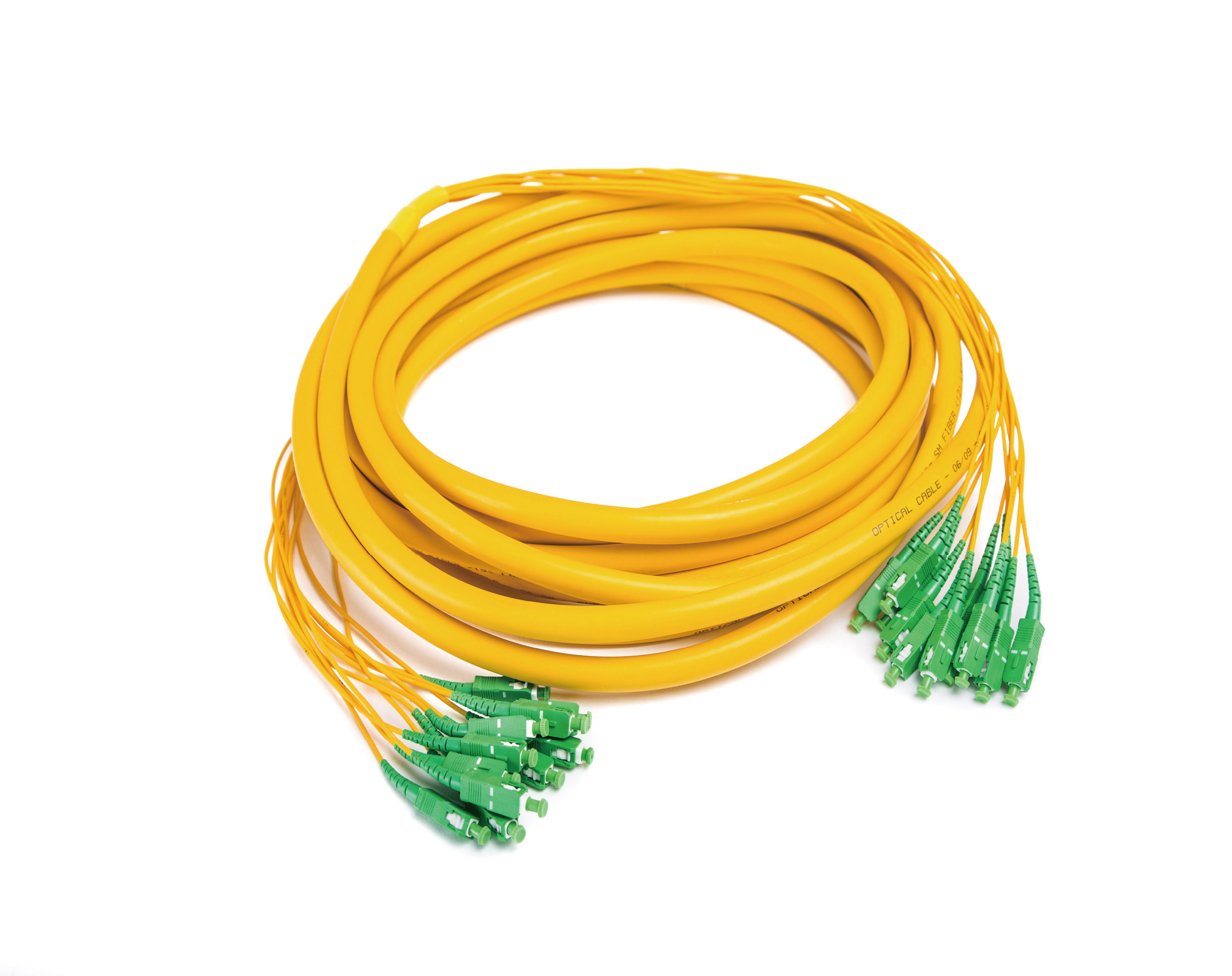

Cable Picture

Fiber Optic Patch Cord/ Fiber Optic Bundle Patch Cord/Stable Optical Properties/Good Exchangability/ LSZH/ Yellow/

Introduction

The main cable of multi-core branch jumper is multi-core round cable with conventional optical fiber connectorat both ends. Black branch or hot shrink tube is used as branch node which can save cost and ensure goodmechanical and optical performance.

Our Bundle Patch cord provides high reliability and flexibility for our customers in differentindustries. Our top-of-the-line fiber optic cable assembles and stringent manufacturing processensures the excellent optical performance for our Bundle Patch cord with traceable data. All Bundle Patchcord can be customized in length, fiber type and connector types to suit each customer requirement withour state-of-the-art production facilities.

Features and Benefits

1) High-quality ferrules.

2) 4-144 core available.

3) Low loss or standard loss connectivity.

4) 100% factory tested assemblies.

5) Low insertion loss, high return loss, stricter than industrystandards.
6) Small volume, high fiber density.

7) Good exchangeability and good durability.

8) Stable optical properties.

Technical Data

Mechnical Data	Value
Connector Type	LC/SC/FC/ST
Polarity Type	A to B, A to A
Branch Cable Diameter	0.9,2.0,3.0mm
Cable Color	Yellow, Orange, Aqua, Violet

Optical Data	Value
Fiber Mode	OS1/OS2/G657A - 9/125 bend insensitive (A.1 or A.2) OM1/2/3/4/5
Fully Compliant	850nm (Multimode), 1310nm/1550nm (Singlemode)
IL(Low Loss)	Singlemode≤0.10dB, Multimode≤0.10dB
IL(Standard Loss)	Singlemode≤0.3dB, Multimode≤0.3dB
Return Loss	Singlemode UPC≥50dB APC≥60dB Muiltmode UPC≥25dB

Environment Data

Description	Value
Operating Temperature	-20℃ to +60℃
Store Temperature	-20℃ to +60℃
Fully Compliant	IEC-61754, TIA/EIA-604, GR326, RoHS

Odering Information

Type

Connector

Polish

Connector

Polish

Fiber Mode

Insertion Loss

Polarity

Branch Cable Diameter

Jacket

Length

FOBPC

1=LC/Simplex

2=SC/Simplex

3=FC/Simplex

4=ST/Simplex

5=LC/Duplex

6=SC/Duplex

1=UPC

2=APC

1=LC/Simplex

2=SC/Simplex

3=FC/Simplex

4=ST/Simplex

5=LC/Duplex

6=SC/Duplex

1=UPC

2=APC

1=OS1

2=OS2

3=G657A1

4=G657A2

5=OM1

6=OM2

7=OM3

8=OM4

9=OM5

1=Low Loss

2=Standard Loss

1=A-A

2=A-B

1=2.0/simplex

2=3.0/simplex

3=2.0x4.1/duplex

1=LSZH

2=PVC

01=01m

...

99=99m

Note: APC only for single mode

Example:FOBPC 5161122313 Means : Duplex, LC/UPC -SC/UPC, OS2, Standard Loss, Polarity AB, OD 2.0X4.1mm, LSZH, 3mLength

Our certificates
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH
