SC - SC UPC Single Mode Armored Fiber Patch Cord With Low Insertion Loss

Product Categories
XDK Communication Equipment Huizhou Co., Ltd
Contact Now

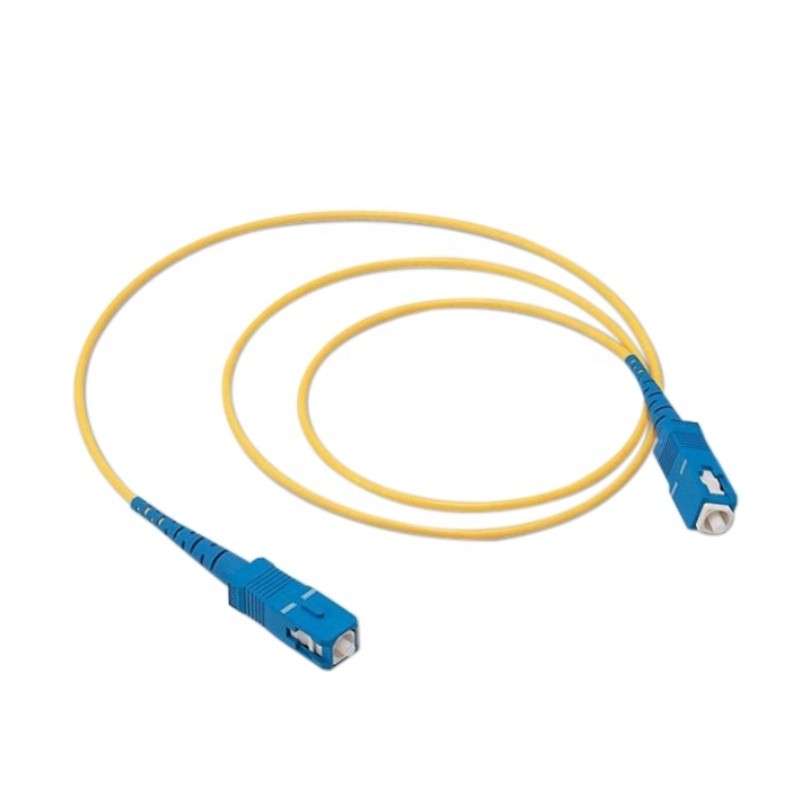

SC - SC UPC Single Mode Armored Fiber Patch Cord With Low Insertion Loss

  • 1
  • 2
  • 3

Brand Name : XDK

Model Number : SC Patch Cord

Certification : ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS

Place of Origin : China/Vietnam

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5 million termination/month

Delivery Time : 5-8 work days

Packaging Details : regular packaging

Conductor : SC

Fiber Type : 9/125μm Single Mode

Jacket Material : LSZH or PVC

Jacket diameter : 2.0mm or 3.0mm

Length : 3m or any length

Color : Blue

Contact Now

Fiber Optic Cable Armored Patch Cord Sc-Sc Upc Single Mode Fiber Optic Patch Cord
Feature
1. The connectors are comply with IEC standards;
2. Different size & color boot option;
3. Low insertion loss; High return loss;
4. 100% interferometer measurement;
5. Various fiber cable option; G652D, G657A, G657B3, OM1, OM2, OM3, OM4 option;
6. SC, FC, LC, ST, E-2000, MTRJ, MU, MTP, MPO, DIN, SMA-905/906, D4 available.

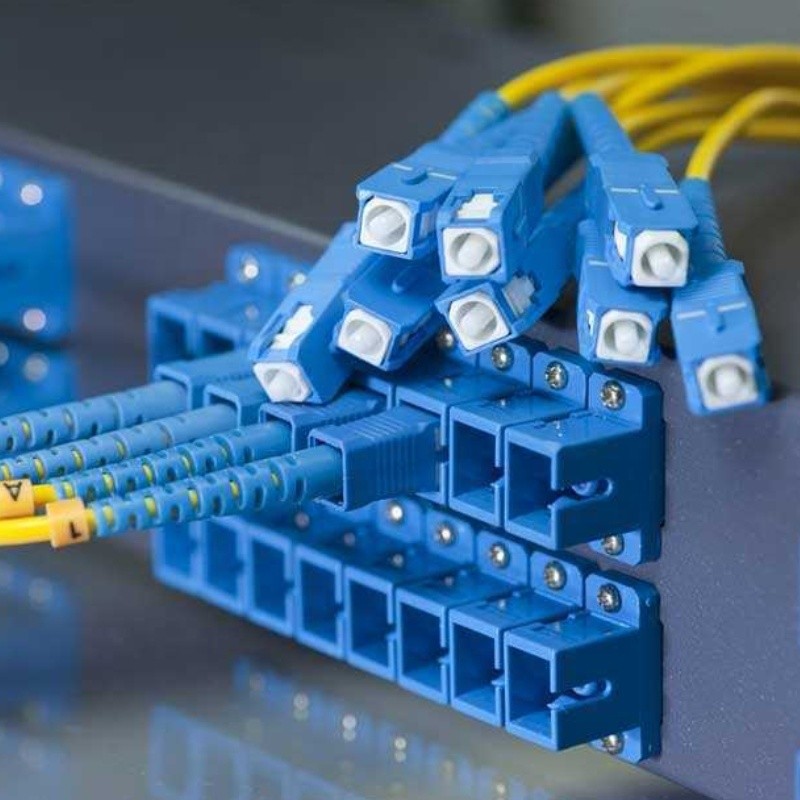

SC - SC UPC Single Mode Armored Fiber Patch Cord With Low Insertion LossSC - SC UPC Single Mode Armored Fiber Patch Cord With Low Insertion Loss
Parameters
Item
SM(Single Mode)
MM(Multimode)
Fiber Cable Type
G652/G655/G657
OM1
OM2/OM3/OM4
Fiber Diameter(um)
9/125
62.5/125
50/125
Cable OD(mm)
0.9/1.6/1.8/2.0/2.4/3.0
Connector Type
SC
Endface Type
APC
PC
UPC
UPC
Typical Insertion Loss(dB)
<0.2
<0.2
<0.1
<0.1
Return Loss(dB)
>60
>45
-
-
Insert-pull Test(dB)
<0.3
<0.2
<0.15
-
Interchangeability(dB)
<0.15
<0.1
<0.1
-
Anti-tensile Force(N)
-
>70
-
-
Temperature Range(℃)
-40~+80
Fiber Cable Characteristics
MM
G.651
A1a.1:50/125
Color:Orange or Other
A1a.2:OM3
Color:Aqua or Other
A1a.3:OM4
Color:Magenta or Other
A1b:62.5/125
Color:Orange or Other
SM
G.652D
Color:Yellow or Other
G.657(A1,A2,A3)
Color:Green or Other
Jacket Material
PVC,LSZH or Other
