9/125 SM Simplex Aqua Fiber Patch Cable SC/APC - SC/APC 1.5m 3.5m

Brand Name : XDK

Model Number : SC Patch Cord

Certification : ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS

Place of Origin : China/Vietnam

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5 million termination/month

Delivery Time : 5-8 work days

Packaging Details : regular packaging

Connector Type : FC,SC,ST,LC,MU,MTRJ,E-2000 and other

Color : Yellow (can be required)

Fiber Type : G657A/G652D/customized

Mode : SM/MM/OM3/OM4

Length : 1m,2m,3m,5m,10m,15m...

Material : PVC, LSZH (can be required)

Contact Now

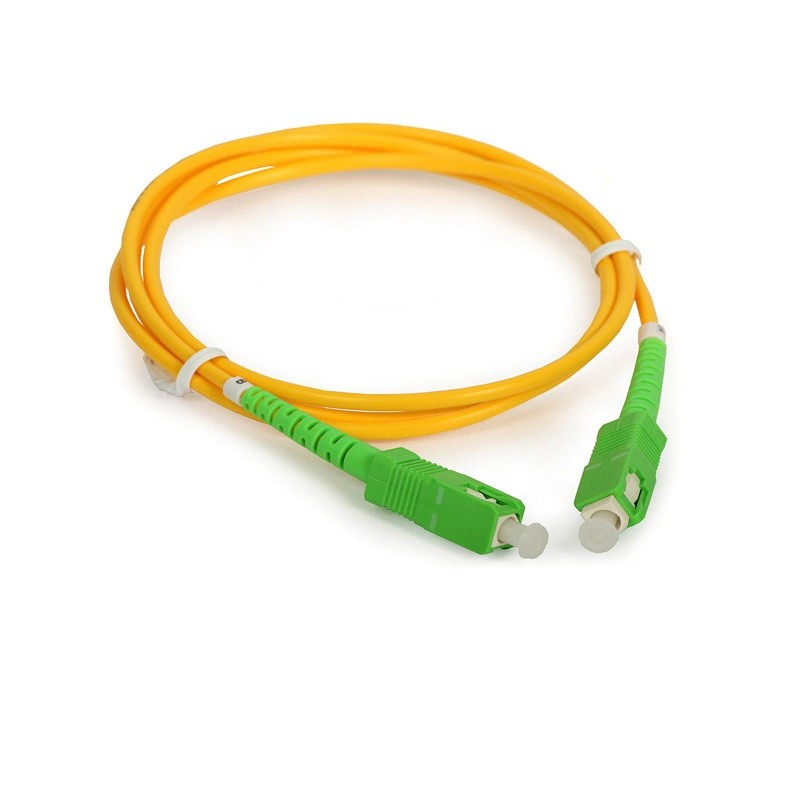

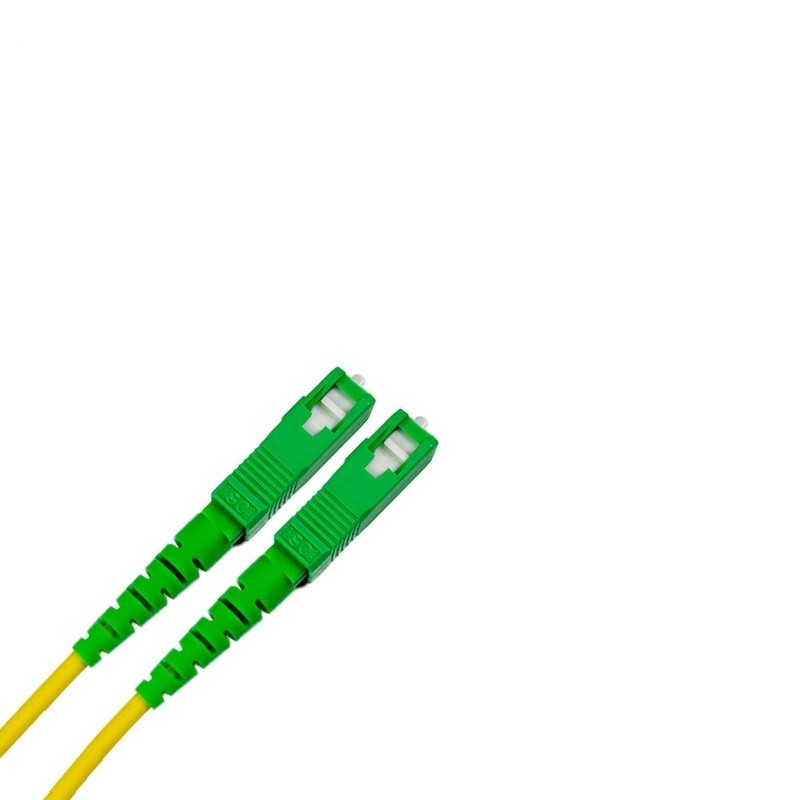

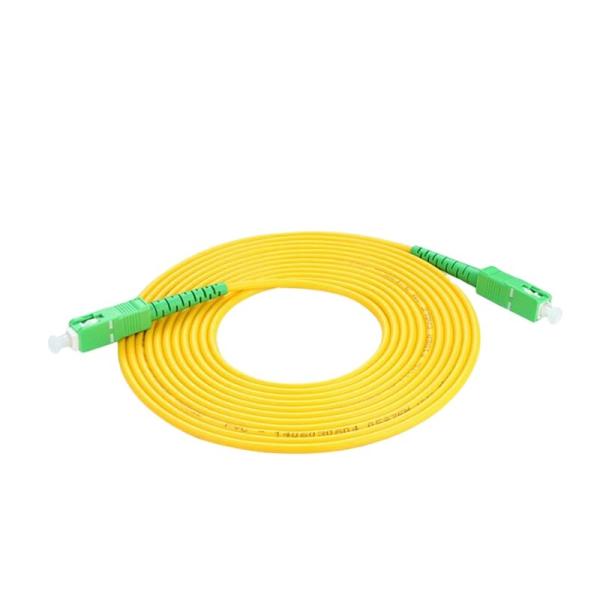

3.0mm 2.0mm Sm Aqua Patch Cable 9/125 Sc/Apc To Sc/Apc 1.5m 3.5m White Simplex Optical Fiber Patch Cord

Description

The optical fiber patch cord is a length of optical fiber with two ends adding connectors to connect beam path.The optical fiber patch cord is one of the most commonly used fiber optic cable, it is convenient to use and cost saving,the fiber patch is widely uesed in fiber optic networks.

Feature

u Low insertion loss and high return loss.

u Three end-surface polishing methods: PC, UPC, APC

u Mechanical durability: more than 500 times of use.

u Cable materials compliant with OFNR and OFNP flame retardant ratings.

u Low insertion loss

Specification

Fiber Connector Type	SC/FC/LC/ST/customized
Fiber Type	Single-mode(SM)	Multi-mode(MM)
Insertion Loss(dB)	Typical: 0.20; maximum: 0.30	Typica: 0.20; maximum: 0.30
Return Loss (dB)	PC ≥ 45, UPC ≥ 50, APC ≥ 60	NA
Operating Temperature (°C)	-40~+80 ℃

FAQ

Q1. What about the price?
Re: We usually quote within 12 hours after we confirm the technical data of your products.

Q2. What's the payment method?
Re: We accept L/C, T/T, Western Union, MoneyGram, PayPal etc.

Q3. What’s your terms of payment?
Re: 30% in advance, and 70% before shipment

Q4. How to ship the items to me?
Re: Courier(DHL,TNT,FEDEX,UPS,EMS), Airfreight, Ocean Ship are available.

Q5. How long is your delivery time?
Re: The general delivery time is 5-7 days after order is confirmed, it depends on the order quantity.

Q6. Can you send me a free sample?
Re: Yes, we are willing to send free sample, if you would like to pay the shipping costs.

Q7. Do you accept OEM or ODM?
Re: Yes, we're factory, any your customized requirements we can do our best to help you realize.
