OM3 Simplex Custom Fiber Patch Cable , 3.0mm LSZH Multimode Fiber Jumpers

Product Categories
XDK Communication Equipment Huizhou Co., Ltd
Contact Now

OM3 Simplex Custom Fiber Patch Cable , 3.0mm LSZH Multimode Fiber Jumpers

Brand Name : XDK

Model Number : Fiber Optic Patch Cord SC/UPC-SC/UPC,OM3, Simplex

Certification : ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS

Place of Origin : China/Vietnam

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 5-8 work days

Packaging Details : regular packaging

Supply Ability : 5 million termination/month

Fiber Mode : OM3 50/125um

Connector Type : SC/UPC-SC/UPC

Fiber Count : Simplex

Jacket Material : LSZH, PVC( can be required)

Jacket Color : Aqua

Length : 1m,5m(customized)

Contact Now

Fiber Optic Patch Cord/SC/UPC-SC/UPC Muiltmode OM3/ Simplex/3.0mm/ LSZH/PVC/ Aqua

Introduction

Fiber optic patch cords suited for equipment jumper cable, cross connects and work area connections. All patch 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards. FC, SC, ST, LC Patch Cords are available in both multimode and single mode cable-types, in duplex and simplex versions.

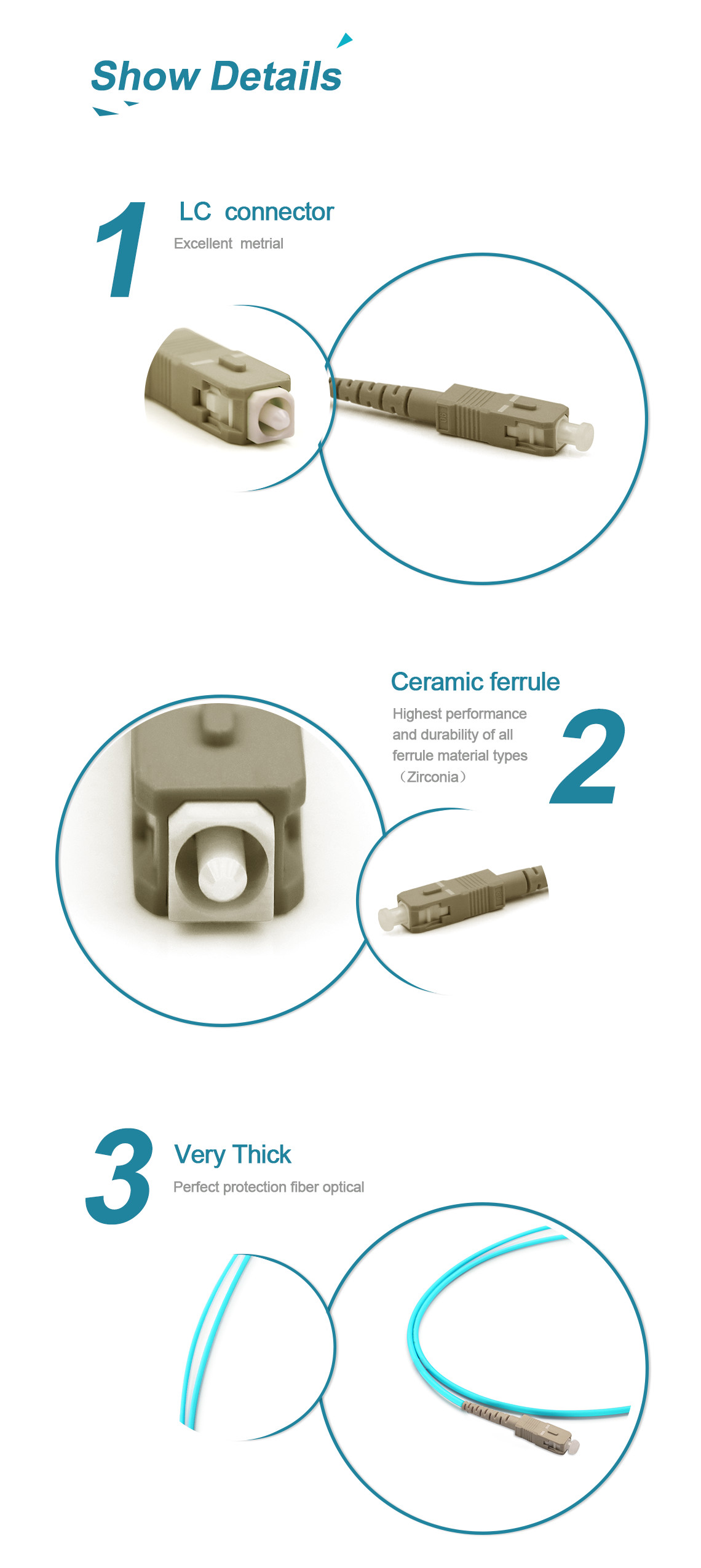

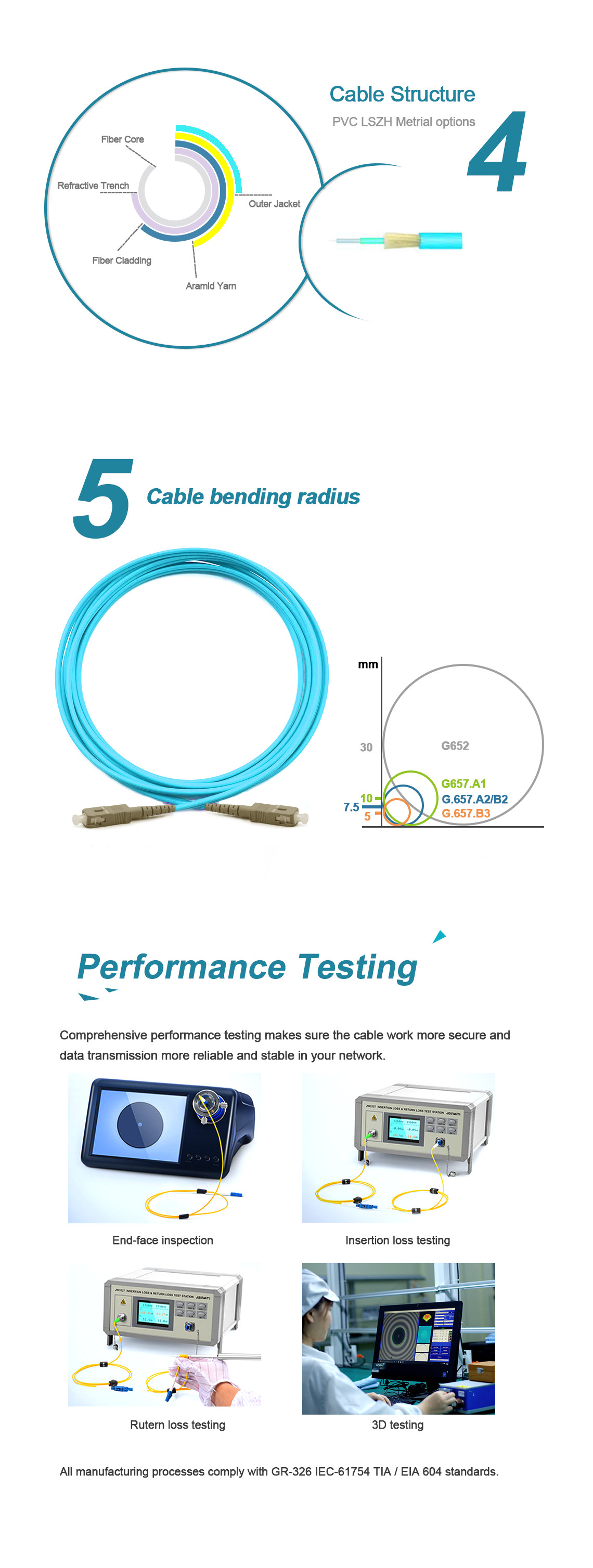

OM3 Simplex Custom Fiber Patch Cable , 3.0mm LSZH Multimode Fiber JumpersOM3 Simplex Custom Fiber Patch Cable , 3.0mm LSZH Multimode Fiber JumpersOM3 Simplex Custom Fiber Patch Cable , 3.0mm LSZH Multimode Fiber Jumpers

Features

1) Avalible in simplex, duplex connector options

2) Quick-tum service for fast delivery

3) TIA compliant color-coded connectors and boots

4) Cable jaket and boots color-coded for easy ID of fiber

5) Fiber options: OS2, OM1,OM3, and OM4

6) 100% tested for insertion loss and return loss

Specification

Connector Type SC/UPC to SC/UPC Fiber Count Simplex
Fiber Mode OM3

OFL Bandwidth

(850/1300nm)

 1500/500 MHz*km
Insertion Loss ≤0.3dB Return Loss ≥35dB

Attenuation at 850/1300nm

(Typical)

 3.5/1.5 dB/km Ferrule Materials Ceramic
Cable Diameter 3.0mm Strength Member Aramid yarn
Optical Source VCSEL

Minimum Bend Radius

(Short term/Long term)

 20D/10D
Operating Temperature -20~70°C Storage Temperature -40~85°C

Our certificates
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH
