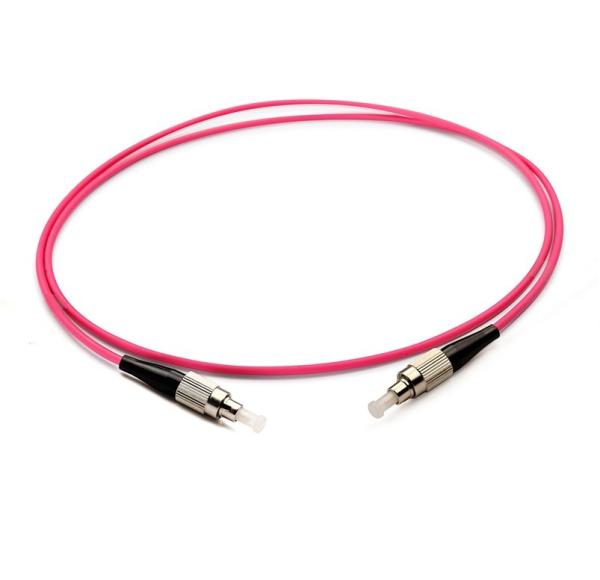

5m OM4 Multimode Fiber Jumpers FC UPC To FC UPC 3.0mm Cable Diameter

XDK Communication Equipment Huizhou Co., Ltd
Contact Now

5m OM4 Multimode Fiber Jumpers FC UPC To FC UPC 3.0mm Cable Diameter

Brand Name : XDK

Model Number : Fiber Optic Patch Cord FC/UPC-FC/UPC, Multimode, OM4

Certification : ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS

Place of Origin : China/Vietnam

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 5-8 work days

Packaging Details : regular packaging

Supply Ability : 5 million termination/month

Fiber Mode : OM4

Connector Type : FC/UPC to FC/UPC

Fiber Count : Simplex

Jacket Material : LSZH or PVC( customized)

Jacket Color : Violet

Length : 1m or 5m(can be required)

Contact Now

Fiber Optic Patch Cord/ FC/UPC-FC/UPC/ Multimode/ OM4 /Simplex /3.0mm/ LSZH/ PVC/Violet

Introduction

Our patch cord provides high reliability and flexibility for our customers in different industries. And it has excellent mechanical and environmental performances. All patchcords can be customized in length, fiber mode and connector types to suit every single customer requirement with our state-of-art production facilities.

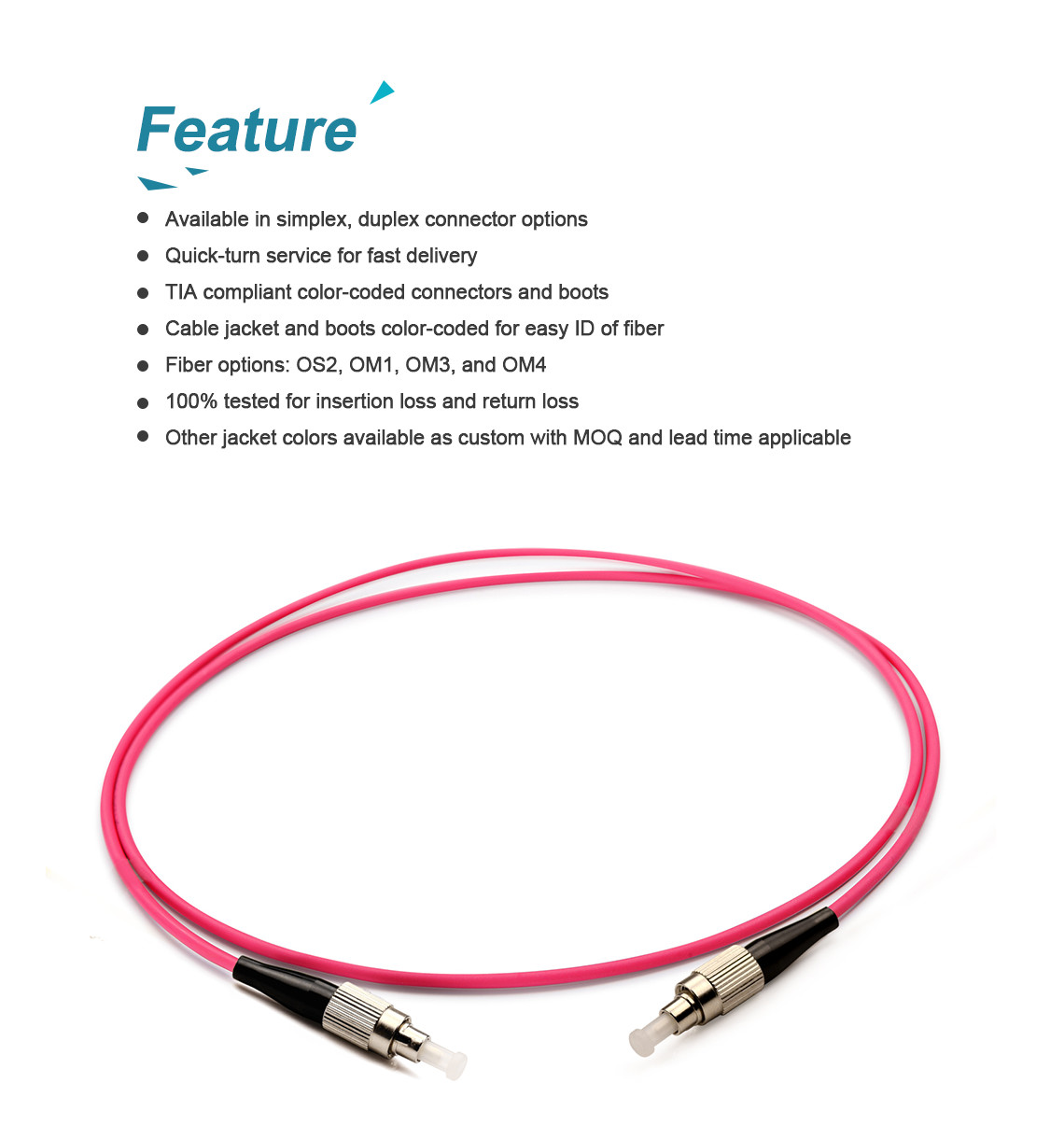

Features

1) Avalible in simplex, duplex connector options

2) Fast delivery

3) TIA compliant color-coded connectors and boots

4) Cable jaket and boots color-coded for easy ID of fiber

5) Fiber options: OS2, OM1,OM3, and OM4

6) 100% tested for insertion loss and return loss

7) Other jacket colors available as custom with MOQ and lead time applicable

5m OM4 Multimode Fiber Jumpers FC UPC To FC UPC 3.0mm Cable Diameter5m OM4 Multimode Fiber Jumpers FC UPC To FC UPC 3.0mm Cable Diameter5m OM4 Multimode Fiber Jumpers FC UPC To FC UPC 3.0mm Cable Diameter

Specification

Connector Type FC/UPC to FC/UPC Fiber Count Simplex
Fiber Mode OM4 50/125um

OFL Bandwidth

(850/1300nm)

3500/500 MHz*km
Insertion Loss ≤0.3dB Return Loss ≥35dB

Attenuation at 850/1300nm

(Typical)

3.5/1.5 dB/km Ferrule Material Ceramic
Cable Diameter 3.0mm Strength Member Aramid yarn
Optical Source VCSEL

Minimum Bend Radius

(Short term/Long term)

20D/10D
Cable Jacket LSZH / PVC Cable Color Voilet
Operating Temperature -20~70°C Storage Temperature -40~85°C

Our certificates
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH

Our advantages
1) Professional cable manufacturer
2) About 20 years experiences in cable industry
3) Can be customized production of fiber optic cable
4) ISO, UL , ROSH,REACH...certifications
