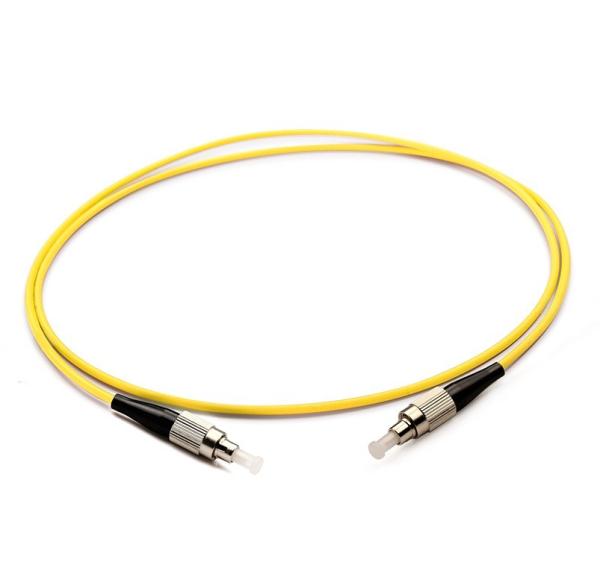

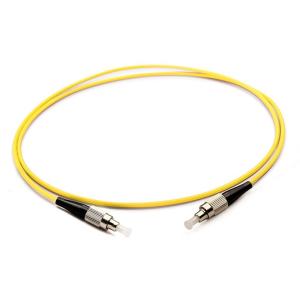

Fiber Optic Patch Cord/ FC/UPC-FC/UPC/ Singlemode/G657A1/ Simplex /3.0mm/ LSZH/ PVC/Yellow
Introduction
Fiber optic patch cords suited for equipment jumper cable, cross connects and work area connections. All patch 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards.
Our patch cord provides high flexibility and reliability for our customers in different industries. Our top-of-the-line fiber optic cable assemblies and stringent manufacturing process ensures the excellent optical performance. All patchcords can be customized in length, fiber mode and connector types to suit every single customer requirement with our state-of-art production facilities.

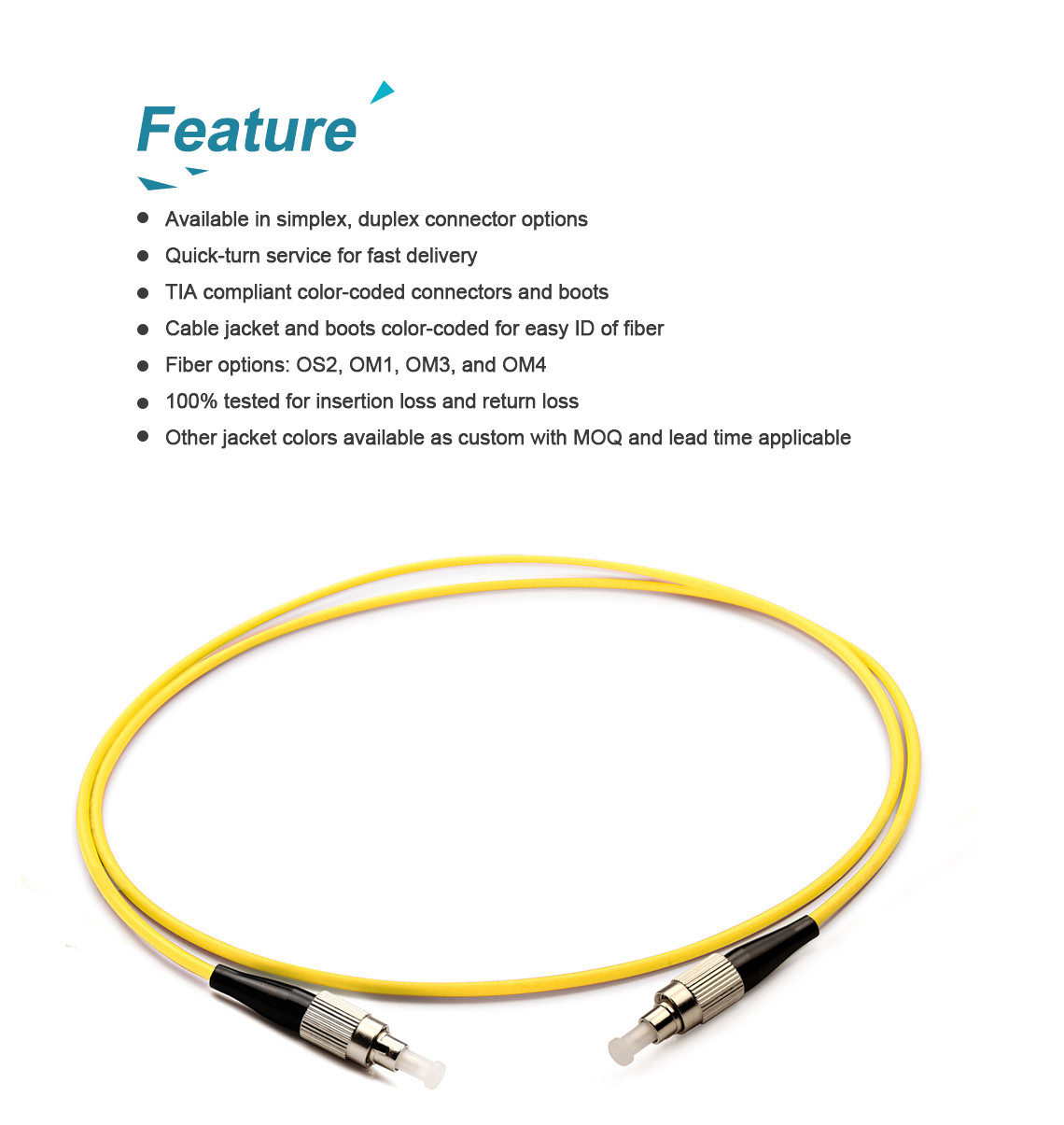

Features
1) Avalible in simplex, duplex connector options
2) Quick-tum service for fast delivery
3) TIA compliant color-coded connectors and boots
4) Cable jaket and boots color-coded for easy ID of fiber
5) Fiber options: OS2, OM1,OM3, and OM4
6) Fully tested for insertion loss and return loss
7) Other jacket colors available as custom with MOQ and lead time applicable
Specification
| Connector Type | FC/UPC to FC/UPC | Fiber Count | Simplex |
| Fiber Mode | G657A1 9/125um | Working Wavelength | 1260~1625nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Attenuation at 1310/1550nm (Typical) | 0.36/0.22 dB/km | Ferrule Material | Ceramic |
| Cable Diameter | 3.0mm | Strength Member | Aramid yarn |
| Minimum Bend Radius (Long term) | 10D | Minimum Bend Radius (Short term) | 20D |
| Cable Jacket | LSZH or PVC | Cable Colour | Yellow |
| Operating Temperature | -20~70°C | Storage Temperature | -40~85°C |
Our certificates
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH
Our advantages
1) Professional cable manufacturer
2) About 20 years experiences in cable industry
3) MOQ just 1Km
4) ISO, UL , ROSH,REACH...certifications
5) Can be customized production of fiber optic cable
