Multimode OM1 FC/UPC-FC/UPC Fiber Optic Patch Cord with best price
Introduction of Multimode OM1 FC/UPC-FC/UPC Fiber Optic Patch Cord
Fiber optic patch cords suited for equipment jumper cable, cross connects and work area connections. All patch 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards. FC, SC, ST, LC Patch Cords are available in both multimode and single mode cable-types, in duplex and simplex versions.
Our patch cord provides high reliability and flexibility for our customers in different industries.
Features of Multimode OM1 FC/UPC-FC/UPC Fiber Optic Patch Cord
1) Avalible in simplex, duplex connector options
2) Quick-tum service for fast delivery
3) TIA compliant color-coded connectors and boots
4) Other jacket colors available as custom with MOQ and lead time applicable
Specifications of Multimode OM1 FC/UPC-FC/UPC Fiber Optic Patch Cord
| Connector Type | FC/UPC to FC/UPC | Fiber Count | Simplex |
| Fiber Mode | OM1 62.5/125um | OFL Bandwidth (850/1300nm) | 500/500 MHz*km |
| Insertion Loss | ≤0.3dB | Return Loss | ≥35dB |
| Attenuation at 850/1300nm (Typical) | 3.5/1.5 dB/km | Ferrule Materials | Ceramic |
| Cable Diameter | 3.0mm | Strength Member | Aramid yarn |
| Optical Source | LED Light | Minimum Bend Radius (Short term/Long term) | 20D/10D |
| Cable Jacket | LSZH or PVC | Cable Colour | Orange |
| Operating Temperature | -20~70°C | Storage Temperature | -40~85°C |
Testing Lab
| No | Device name | No | Device name |
| 1 | Optical time domain reflectometer (OTDR) | 8 | GNZV Cable Torsion Testing Machine |
| 2 | Fiber Polarization Mode Dispersion | 9 | GQNV Cable Flexing Testing Machine |
| 3 | Fiber Dispersion ,Strain Tester | 10 | GJRV Cable Winding Testing Machine |
| 4 | High Low Temperature Test Chamber | 11 | GZDV Cable Vibration Testing Machine |
| 5 | Cable Impact Testing Machine | 12 | Cable Water Penetration Test |
| 6 | Cable Squash Tensile Testing Machine | 13 | Fusion Splicer |
| 7 | GWQV Cable Bending Tester | 14 | Cable Water Penetration Test Rig |
Our advantages of Multimode OM1 FC/UPC-FC/UPC Fiber Optic Patch Cord
1) Professional cable manufacturer
2) About 20 years experiences in cable industry
3) MOQ just 1Km
4) ISO, UL , ROSH,REACH...certifications
5) Can be customized production of fiber optic cable

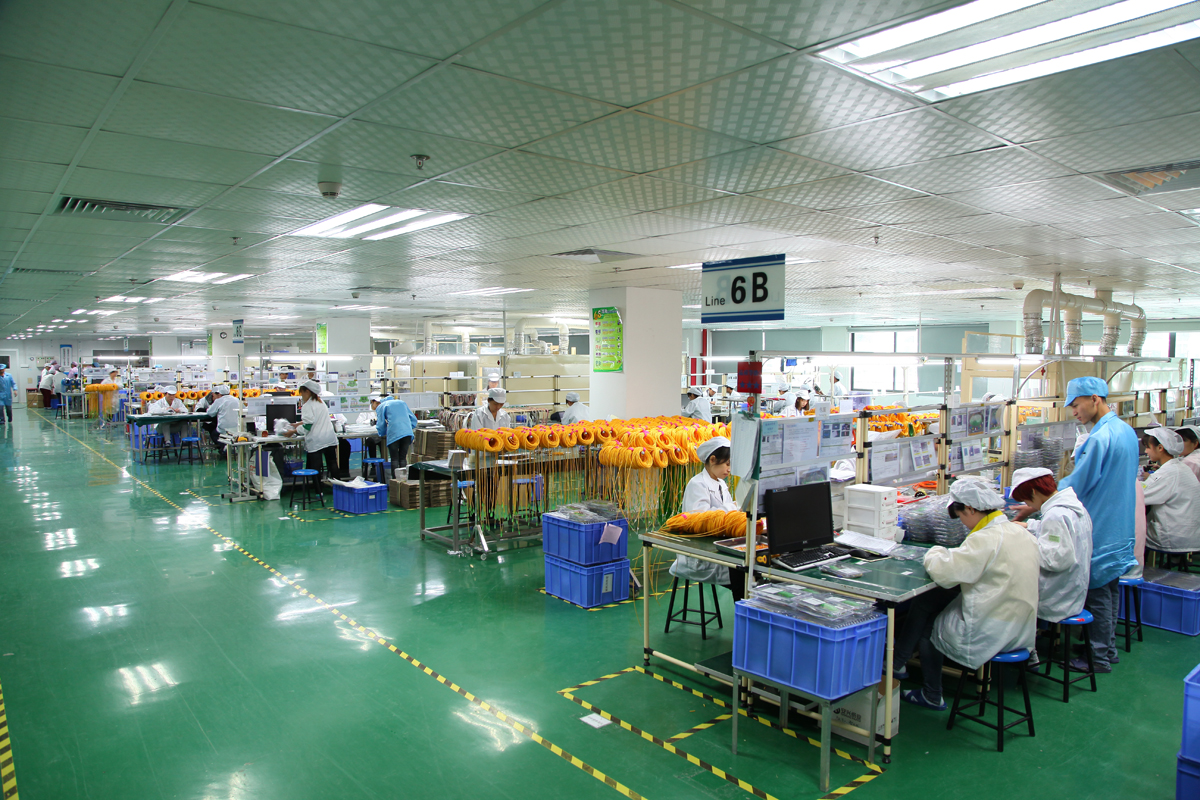

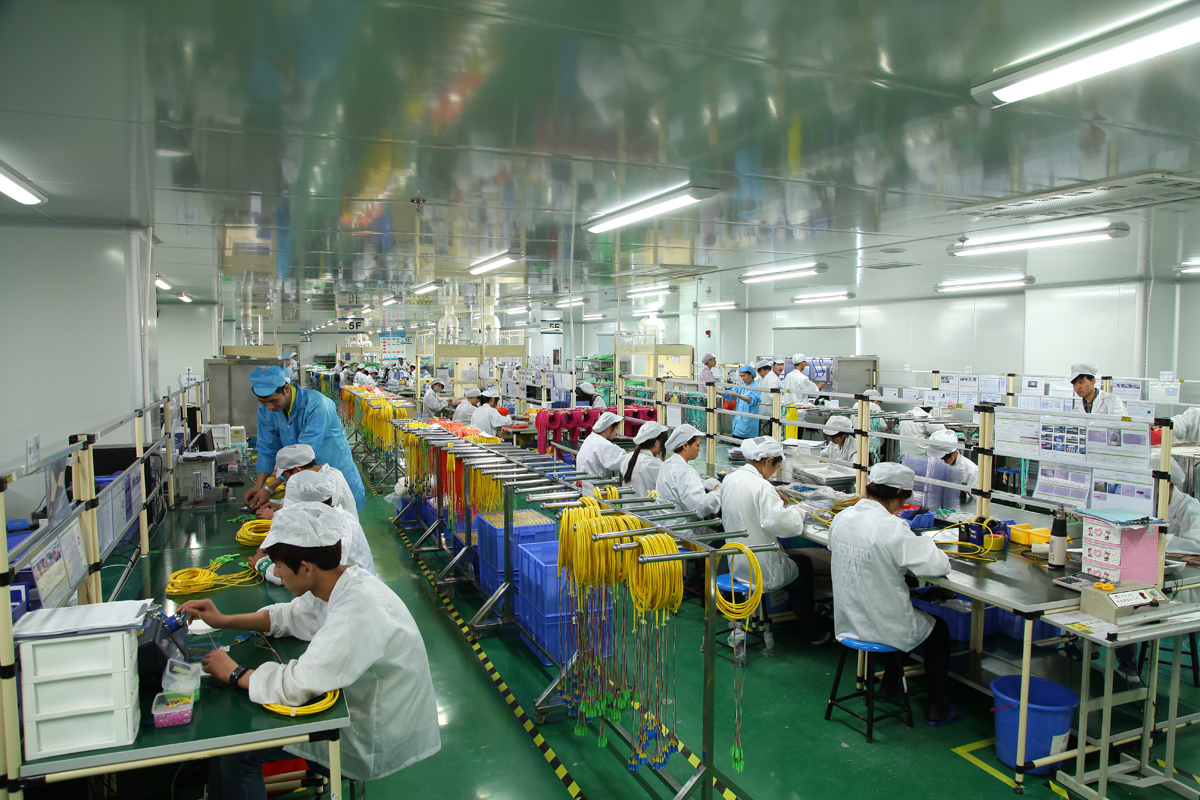

Pictures of Multimode OM1 FC/UPC-FC/UPC Fiber Optic Patch Cord production line

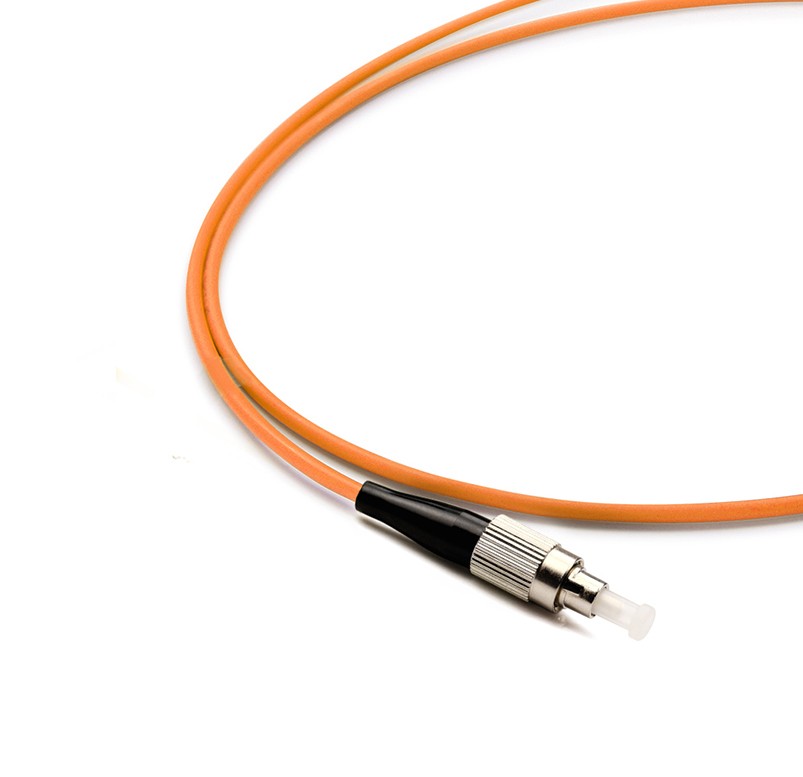

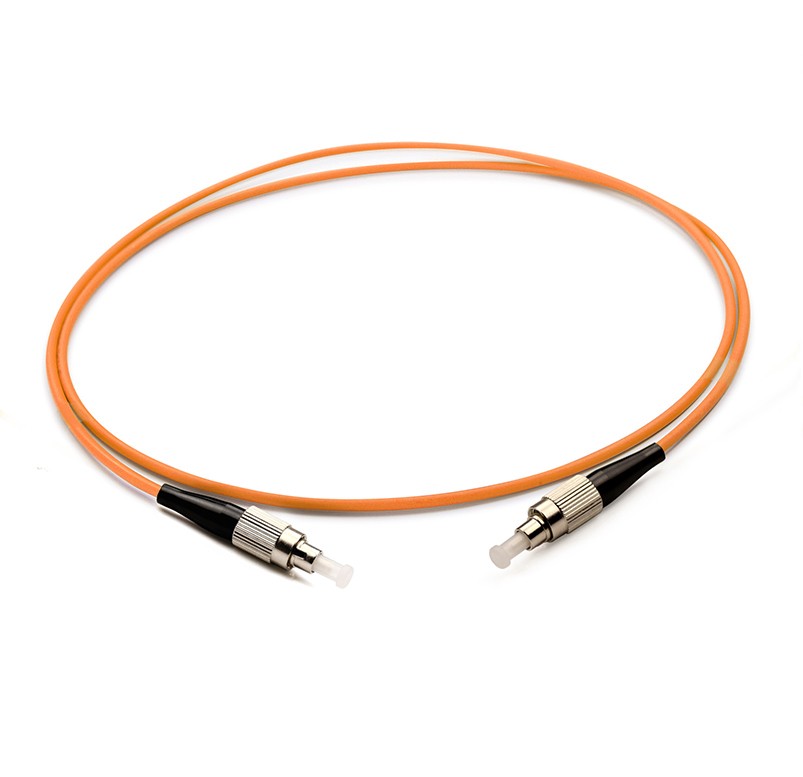

Pictures of Multimode OM1 FC/UPC-FC/UPC Fiber Optic Patch Cord
