Singlemode LSZH/ PVC G657A1 FC/UPC-FC/UPC Fiber Optic Patch Cord
Introduction of FC/UPC-FC/UPC Fiber Optic Patch Cord
Fiber optic patch cords suited for equipment jumper cable, cross connects and work area connections. All patch 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards. FC, SC, ST, LC Patch Cords are available in both multimode and single mode cable-types, in duplex and simplex versions.
All patchcords can be customized in length, fiber mode and connector types to suit every single customer requirement with our state-of-art production facilities.
Features of FC/UPC-FC/UPC Fiber Optic Patch Cord
1) Avalible in simplex, duplex connector options
2) Quick-tum service for fast delivery
3) TIA compliant color-coded connectors and boots
4) Other jacket colors available as custom with MOQ and lead time applicable
Specifications of FC/UPC-FC/UPC Fiber Optic Patch Cord
| Connector Type | FC/UPC to FC/UPC | Fiber Count | Simplex |
| Fiber Mode | G657A1 9/125um | Working Wavelength | 1260~1625nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Attenuation at 1310/1550nm (Typical) | 0.36/0.22 dB/km | Ferrule Materials | Ceramic |
| Cable Diameter | 3.0mm | Strength Member | Aramid yarn |
| Minimum Bend Radius (Long term) | 10D | Minimum Bend Radius (Short term) | 20D |
| Cable Jacket | PVC or LSZH | Cable Colour | Yellow |
| Operating Temperature | -20~70°C | Storage Temperature | -40~85°C |
Our advantages of FC/UPC-FC/UPC Fiber Optic Patch Cord
1) Professional cable manufacturer
2) MOQ just 1Km
3) ISO, UL , ROSH,REACH...certifications

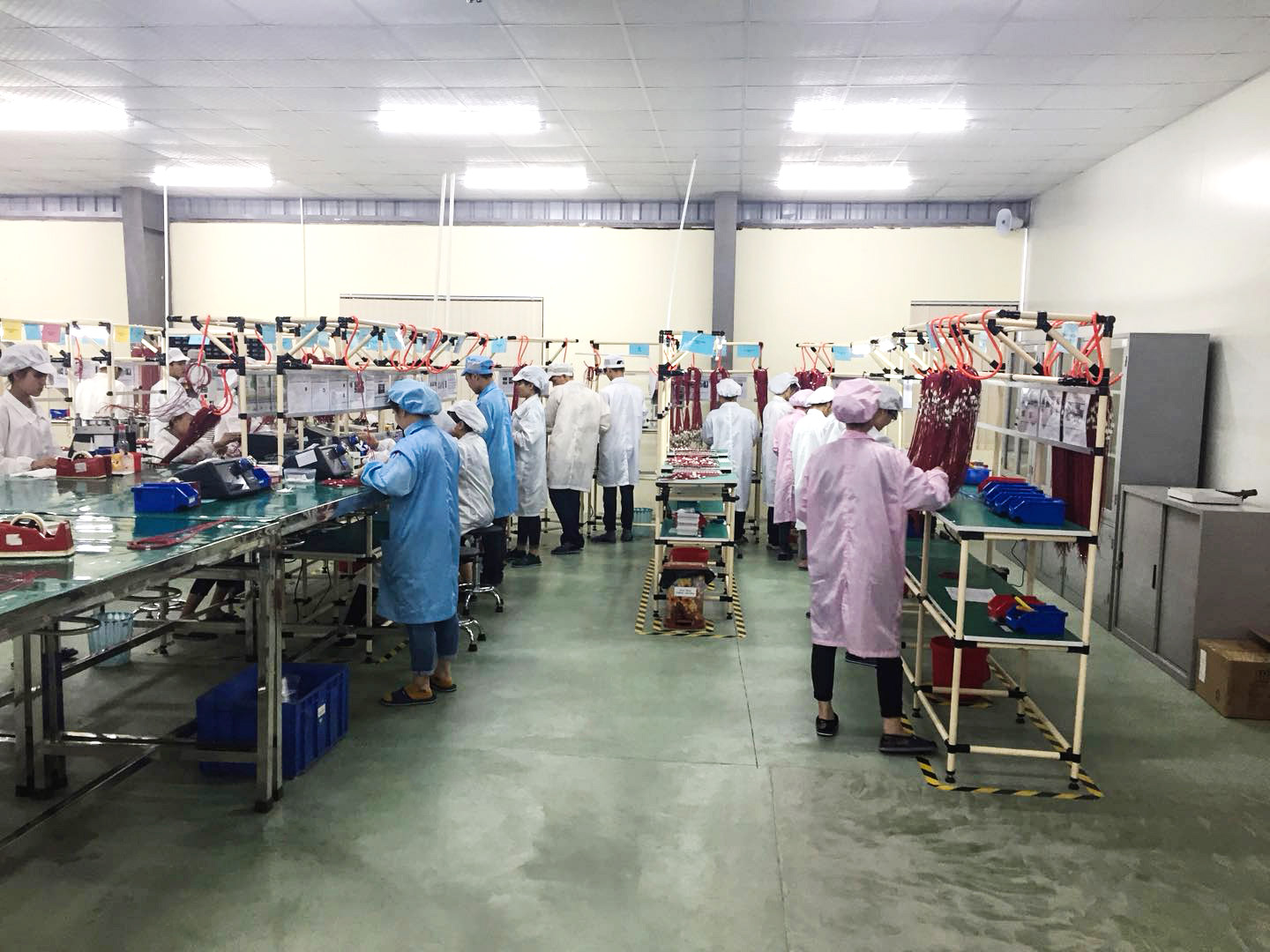

Production line of FC/UPC-FC/UPC Fiber Optic Patch Cord

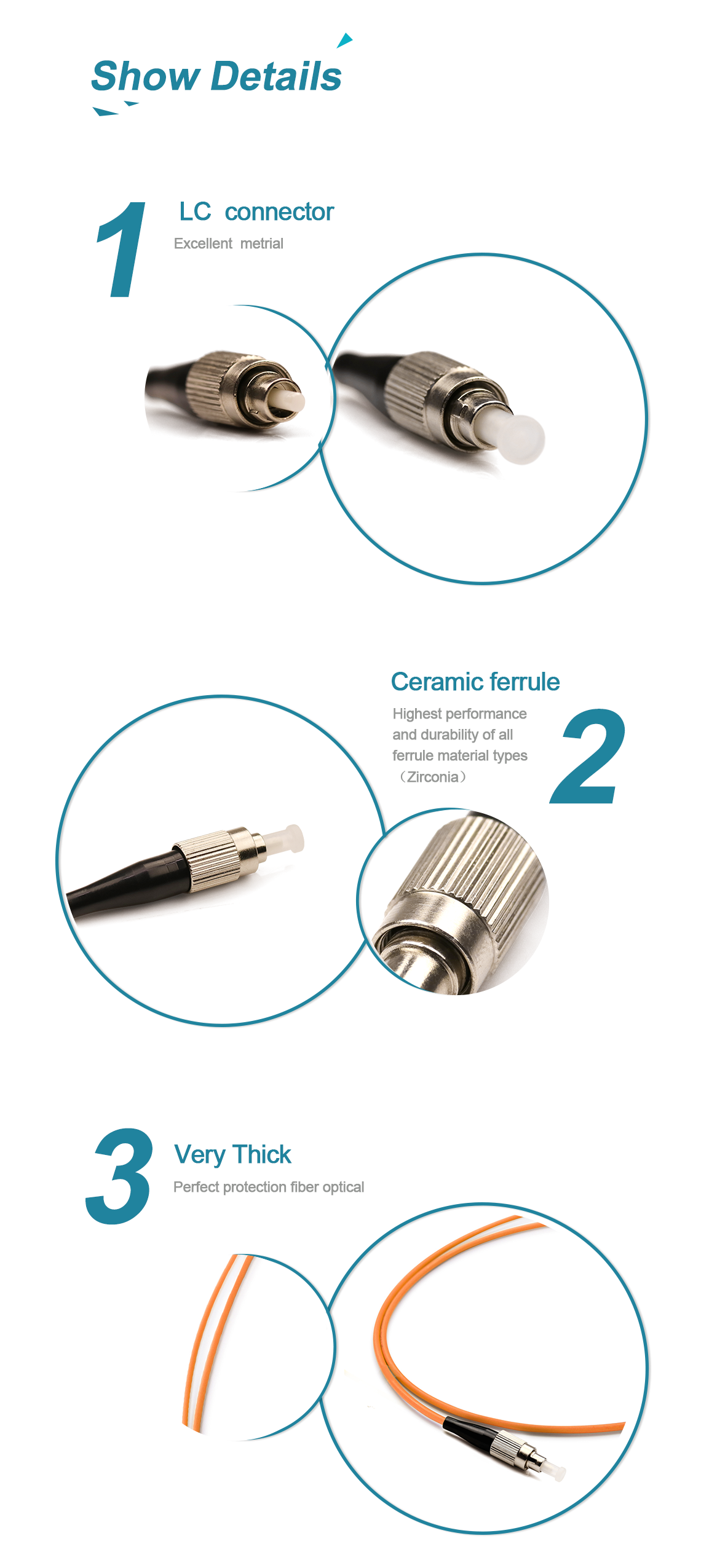

Pictures of of FC/UPC-FC/UPC Fiber Optic Patch Cord
