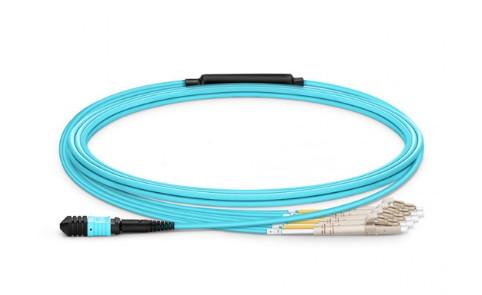

OM3 12F 50/125 12 Core MTP MPO Fiber Cable Multimode Mpo To Lc

  • 1
  • 2

Brand Name : XDK

Model Number : MTP/MPO

Certification : CPR, DCR,ECR,FCR,ROHS,ISO9001,UL

Place of Origin : China/ Vietnam

MOQ : 10PCS

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5million termination per month

Delivery Time : 7 Working day

Packaging Details : OEM PE bag, carton box, wooden roll

Connector : MPO, LC, MTP, SC, LC UPC and MTP UPC Male

Application : data center cabling, Telecom/network, Telecommunication, TIA942 Polarity management system, Gigabit Ethernet

Color : As picture or customized, Yellow, Aqua, Customized, white or customized

Connector type : MPO, LC, MTP, ST, FC

Insert loss : ≤0.30 dB (MM), ≤0.35dB (SM), ≤0.30 dB(MM), ≤0.35 dB (Elite)

3d testing : 100%

Contact Now

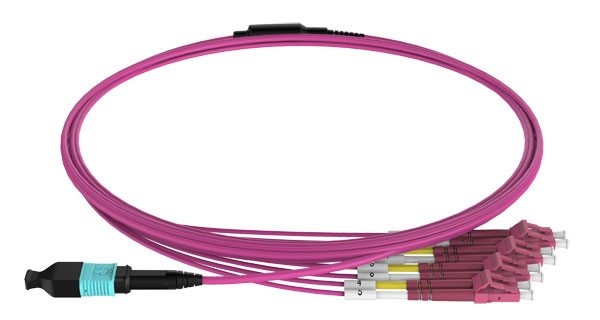

OM3 MTP/MPO-LC Breakout Cable 12F 50/125 12 core multimode fiber optic cable

Description:

MTP/MPO breakout assemblies are used in parallel optics and duplex transmission cross connect systems to increase cable density between switch and server cabinets. Designed for high-density fiber patching in data centers, they ensure peak performance throughout your local area network. Allow for rapid deployment of high-density, multi-port patch field connectivity for Storage Area Network (SAN) applications.

Features:

• US Conec MTP® connector, Senko MPO Plus premium connector

• Corning Clearcurve® multimode fiber, SMF-28® Ultra optical fiber

• LC, SC, FC, ST connectors available

• OS2, OM4, OM3 available

• 0.35dB elite low loss connector

• Custom staggering options available on tails

• Factory terminated and tested

• Pulling eyes are provided as an option to protect the fiber ends during installation

Polarity Type A, Type B, Type C Connector A Polish Type UPC or APC
Connector B Type LC, SC, FC, ST Connector B Type UPC or APC
Fiber Count 8/12/24 Fiber Glass CORNING or equivalent fiber
Fibre Mode

Single mode: OS2 9/125µm

Multimode: OM3 50/125µm, OM4 50/125µm

 Wavelength

Single Mode: 1310/1550,

Multimode: 850/1300
Breakout Cable Length 0.5/0.3m or customized Minimum Bend Radius Single Mode: 10.0mm, Multimode: 7.5mm
Jacket Color Yellow; Aqua; Violet Jacket Material OFNR, OFNP, LSZH
Attenuation

Single Mode: ≤0.32 at 1310nm, ≤0.20 at 1550nm

Multimode: ≤2.3 at 850nm, ≤0.6 at 1300nm

 Transmission Distance

OM3: 100m at 40/100G, 300m at 10G

OM4: 150m at 40/100G, 400m at 10G
Insertion Loss Single Mode: ≤0.35, Multimode: ≤0.35 Return Loss

Single Mode: UPC Polish: ≥50, APC Polish: ≥60

Multimode: ≥20
Installation Tensile Load 100N Long-Term Tensile Load 50N
Storage Temperature -40°C to +85°C Operating Temperature -10°C to +70°C

OM3 12F 50/125 12 Core MTP MPO Fiber Cable Multimode Mpo To Lc
