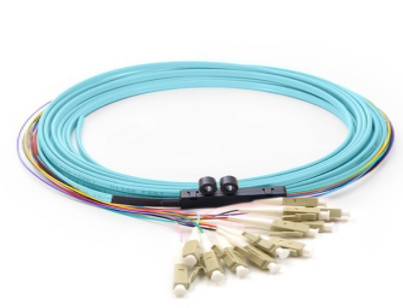

LSZH Jacket LC Ribbon Fanout Fiber Optic Pigtails For Data Center

  • 1
  • 2

Brand Name : XDK

Model Number : Ribbon Fan-out Pigtail

Certification : ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS

Place of Origin : China/Vietnam

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5 million termination/month

Delivery Time : 5-8 work days

Packaging Details : regular packaging

Fiber Type : SM, MM

Fiber Mode : G652D, G657A, G657B, OM1, OM2, OM3, OM4

Connector Type : LC

Material : LSZH, OFNP, PVC

Color : according to stranded color (can be required)

Contact Now

LSZH Yellow Fiber Optic LC Ribbon Fan-out Pigtail used in Data Center, CATV and LANs

Description
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.

Features

  1. 100% factory tested assemblies with traceable test data,Low environmental sensitivity
  2. Low insertion loss,High return loss,Stricter than industry standards
  3. Good exchange ability and good durability,Stable optical properties
  4. Standard connector,Various connector option: LC,SC,FC,ST etc.
  5. Compliant with IEC61754,GR-326,TIA/EIA 568 standard

Specification

Fiber Type SM(9/125um) MM(50/125um,62.5/125um)

Polish

 UPC APC UPC
Insertion Loss (typical) ≤0.30dB ≤0.30dB

Return Loss

 ≥50dB ≥60dB ≥20dB
3D

Radius of Curvature :10-25mm(PC/UPC) ,5-12mm(APC)

Apex offset : 0-50um
High fiber : ±100 nm

Angle:8±0.2°(APC)

Repeatability

 1000 times typical change value ≤ 0.20dB

Interchangeability

 ≤ 0.20dB
Cable Diamete(Branch) 0.9mm
Jacket Material(optional) LSZH,OFNP,OFNR,PVC
Fiber Moder(optional) G652D, G657A, G657B, OM1, OM2, OM3, OM4
Operating Temperature -20 ~ +70 ℃
Storage Temperature -40 ~ +85 ℃

Application

  1. CATV,LANs,WANs
  2. Telecommunication networks
  3. Active device termination
  4. Data center system networks
  5. Video and military active device termination


LSZH Jacket LC Ribbon Fanout Fiber Optic Pigtails For Data Center
