FTTX/FTTH/Indoor/Outdoor Self-Supporting Butterfly Drop Cable/LSZH/Black/Water Blocking/FRP/
Description

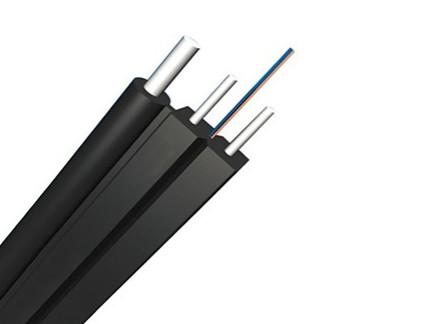

(GJYXFCH) Indoor/Outdoor self-supporting butterfly drop cable , the optical fiber unit is positioned in the centre. two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. a steel wire as the additional strength member is also applied. then the cable is completed with a black or color LSZH sheath.
Features
1) Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
2) Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
3) Single steel wire or messengers as the additional strength member ensures good performance of tensile strength
4) Simple structure, light weight and high practicability
5) Novel flute design, easily strip and splice, simplify the installation and maintenance
6) Low smoke, zero halogen and flame retardant sheath
Application
1) Adopted to outdoor level and vertical distribution
2) Suitable for connect with communication equipment
3) Long distance and local area network communication
Specification
1) Fiber Allocation Scheme
| Fiber number |
Tube number |
Fiber per tube |
Fiber type |
| 1-4 |
... |
... |
Single Mode |
Requirement for Order
1) Fiber sort: Single mode: G657
2) Fiber brand: YOFC, Corning, Fiberhome,Fujikura,OFS etc.
3) Jacket material: PVC,LSZH ( can be required).
4) The fiber and tube color: according to stranded color, can be required.
5) Length of cable: generally is 2KM, can be required.
6) Other requirement: can be negotiated.
Packing Informations
1) Packing material: Wooden drum
2) Packing length: standard length of cable shall be 2 km. Other cable length is also available if required by customer
Our certificates
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH
Testing Lab
| No |
Device name |
No |
Device name |
| 1 |
Optical time domain reflectometer (OTDR) |
8 |
GNZV Cable Torsion Testing Machine |
| 2 |
Fiber Polarization Mode Dispersion |
9 |
GQNV Cable Flexing Testing Machine |
| 3 |
Fiber Dispersion ,Strain Tester |
10 |
GJRV Cable Winding Testing Machine |
| 4 |
High Low Temperature Test Chamber |
11 |
GZDV Cable Vibration Testing Machine |
| 5 |
Cable Impact Testing Machine |
12 |
Cable Water Penetration Test |
| 6 |
Cable Squash Tensile Testing Machine |
13 |
Fusion Splicer |
| 7 |
GWQV Cable Bending Tester |
14 |
Cable Water Penetration Test Rig |
Fiber Optic Cable Mechanical Performance Testing Laboratory
1) Main Testing Type: Precision Test and Mechanical Test.
2) Precision Testing Machine: EXFO OTDR, EG&G PMD-440,CD-400.
3) Mechanical Performance Testing : Temperature, Impact, Tensile, Bending, Torsion, Flexing, Winding, Vibration, Water Penetration, Fusion Splicer, Water Penetration.
Our advantages
1) Professional cable manufacturer
2) About 20 years experiences in cable industry
3) MOQ just 1Km
4) ISO, UL , ROSH,REACH...certifications
5) Can be customized production of fiber optic cable
